Ref: Model 802 Deepwater 2500m

Submersible inclinometer 2500 m – ±0.5°, ±3° or ±50° – Analog or Digital output

  • Measurement ranges: ±0.5°, ±3°, and ±50°
  • Rugged housing submersible up to 2500 m in fresh and salt water
  • Available in single or dual axis
  • Resolution: 0.0001°, 0.0006°, or 0.01°
  • Accuracy: ±0.008°, ±0.08°, or ±0.5°
  • Electrolytic technology
  • Version A802: Output signal ±5 VDC
  • Version C802: Output signal 4–20 mA
  • Version D802: RS-232/485 output
  • Temperature output
  • Response time: 0.15 or 1.75 sec
  • Operating temperature: -4 to +60 °C
  • Dimensions: 120 x 80 x 60 mm, Weight: 5 kg

Download the product sheet

Log in to see the price
Login
?
lead time : 4-12 weeks

Overview

The 802 submersible precision inclinometer is designed for use in fresh or salt water down to 2500 m depth.
Using a gravity-sensitive electrolytic element, the 802 inclinometer provides accurate, fine measurements (resolution from 0.0001° to 0.01° depending on model) with excellent long-term stability on one or two axes.

Three measurement ranges are available: ±0.5°, ±3°, and ±50°, with three output types:

Model Output signal
A802 ±5 VDC
C802 4–20 mA (2-wire current loop)
D802 Digital

In the uniaxial version, installation can be transverse or longitudinal (to be specified when ordering).
The admissible supply voltage is 8–18 VDC for the voltage version, 12–29 VDC for the 4–20 mA version, and 7–28 VDC for the digital output.
Connector output + cable to be ordered separately.

Typical zero and gain temperature sensitivities are ±0.0002 °/°C and 0.04%/°C, respectively.
A temperature output is included, allowing compensation of measurement errors due to temperature variations.

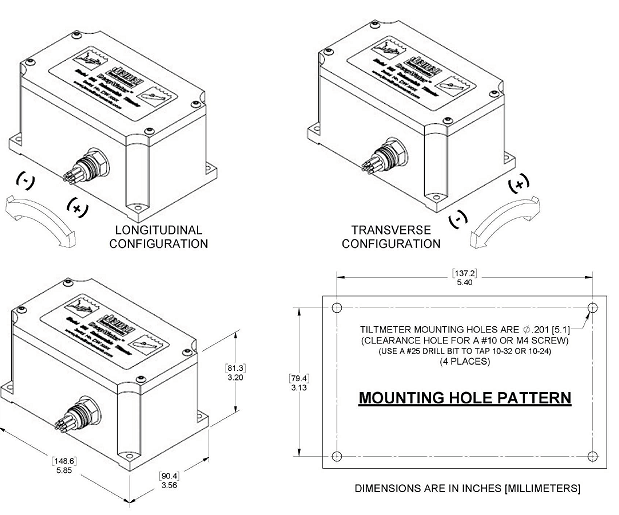

Installation

Dimensions

Applications

  • Structural monitoring
  • Infrastructure monitoring
  • Wind turbine monitoring
  • Offshore applications
  • Pipeline monitoring
Technologie
Geotechnical
Number of Axis
1 Axis, 2 Axis
Etendue de mesure
0.5 / 3 / 50 °
Résolution
0.000001°- 0.001°
Bande passante (-3 dB)
5 , 0.5 Hz
Application
High Accuracy, Sbmersible, geotechnical
Nonlinearity (% FS)
± 0.5 , 1 , 2 %
Zero Balance
0.0002 %PE/°C
Sensibilité du gain
0.02 %/°C
Sortie analogique
analog (Voltage)
Analog output signal
± 5 VDC, 4-20 mA
Digital output signal
RS-485, RS-232
Tension d'alimentation
8-18 VDC
Température de fonctionnement
-4 to 60 °C
Protection Class
IP68
Housing
Titanium

  • Calibration spéciale
  • alimentation 24-34 vdc
  • version monoaxe
  • Câble
  • Connecteur
  • Coffret de conditionnement
  • Afficheur
