End of shaft Slip rings

End of shaft Slip rings

MSC slip ring assemblies are designed to mount on the end of a rotating shaft and make electrical connections to strain gages, thermocouples, or other rotating sensors.

Michigan Scientific End of Shaft Slip Ring Assemblies are typically used for torque, stress, temperature, vibration and acceleration measurements on such rotating devices as wheels, axles, engines, gearboxes, electric motors, compressors, etc.

collecteur tournant

B4-2, B6-2, B8-2

Slip Ring – Tubular – 4, 6 or 8 circuits – 50.8mm – 7000rpm
collecteur tournant tubulaire

B4-2/E60, B6-2/E60, B8-2/E60

Slip Ring - Tubular - 4, 6 or 8 Circuits - 60 PPR Encoder - Rotor 50.8mm
collecteur tournant tubulaire

B4-2W, B6-2W

Slip Ring – Tubular – 4 or 6 circuits – 50.8mm – 7000rpm – Weatherproof
collecteur tournant bout d'arbre

B4-2WT

Slip Ring – Tubular – 4 circuits – 50.8mm – 7000rpm – Weatherproof - thin design
B4-3.2, B6-3.2 - Slip Ring – Tubular – 4, 6 or 8 circuits – 81.3mm – 4500rpm

B4-3.2, B6-3.2

Slip Ring – Tubular – 4, 6 or 8 circuits – 81.3mm – 4500rpm
collecteur tournant bout d'arbre

B6-3.2W, B6-3.2W/E60

Slip Ring – Tubular – 6 circuits – 81.3mm – 4500rpm – Weatherproof
collecteur tournant tubulaire

B7-T-1.24W

Wheatherproof 7 connection tubular slip ring – 1.24" – 3500rpm
B7-T-1.2W - Wheatherproof 7 connection tubular slip ring – 1.2" – 3500 rpm

B7-T-1.2W

Wheatherproof 7 connection tubular slip ring – 1.2" – 3500 rpm
OEM Slip Ring - Customized Slip ring based signal transmission

OEM Slip Ring

Customized Slip ring based signal transmission
collecteur tournant mesure

S-Series

Slip Ring - End of Shaft - 4, 6, 8, 10 Circuit - 12000 rpm
Collecteur tournant digital

SD-Series

Slip Ring for digital slip rings - Ethernet USB PoE - 12000 rpm
collecteur tournant bout d'arbre short S Series

SHORT S-SERIES

Slip Ring – End of Shaft – Compact – 4 to 10 Circuits - 12000 rpm
collecteur tournant mesure

SR Series

Robust Slip ring Assembly - End of shaft - 6 to 36 circuits
collecteur tournant bout d'arbre

SR__/PE512 Series

Slip ring assembly - 0 to 10 circuits - precision encoder
collecteur tournant bout d'arbre

SR/E60 Series

End of shaft Slip ring - 4 to 10 circuits - Encoder - 6000 rpm
collecteur tournant bout d'arbre

SR/ERT Series

Modular slip ring - end of shaft - 10 to 36 circuits - with encoder
collecteur tournant bout d'arbre

SR10AW/E60/A

Slip Ring – End of Shaft – 10 Circuits - Encoder 60 ppr
collecteur tournant bout d'arbre

SR20/75/W

Slip ring - axial- 20 circuits - miniature
collecteur tournant bout d'arbre

SR45A-AXHS & SR60A-AXHS

Slip Ring – End of Shaft – 45 and 60 circuits
TrueSlip - TrueSlip Side Slip Sensor

TrueSlip

TrueSlip Side Slip Sensor
Wheel Instrumentation System - Wheel instrumentation for strain gage and thermocouple measurements

Wheel Instrumentation System

Wheel instrumentation for strain gage and thermocouple measurements

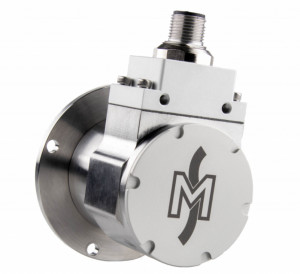

Wheel Pulse Transducer - High resolution wheel pulse transducer - 5000 ppr

Wheel Pulse Transducer

High resolution wheel pulse transducer - 5000 ppr
