Ref: B0xY31

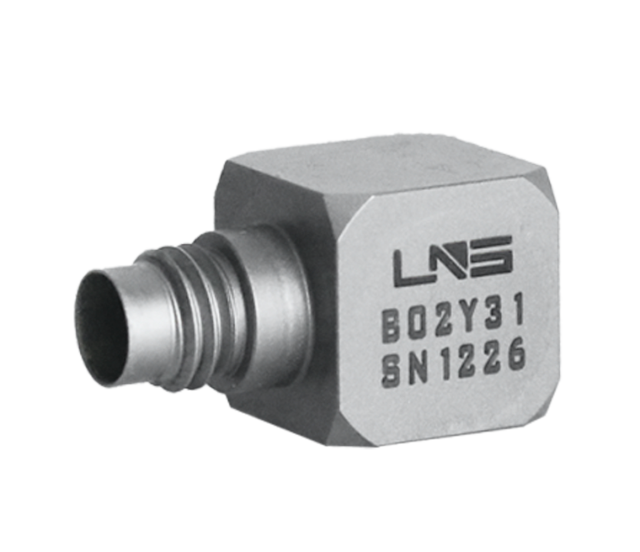

IEPE triaxial accelerometer - reduced dimensions - ± 50 to ± 1000g

  • IEPE (Integrated Electronic Piezoelectric) triaxial accelerometer
  • Measuring ranges: ± 50g, ± 100g, ± 250g, ± 500g or ± 1000g
  • Sensitivity: 5mV/g, 10mV/g, 20mV/g, 50mV/g or 100mV/g
  • Bandwidth at +/- 10%: 0.5 Hz to 10 kHz
  • Connection system: 4-pin 1/4-28 connector
  • IP68 waterproof
  • Resonant frequency: > 35 kHz to > 70 kHz depending on version
  • Dimensions: 11x11x11 mm or 12.2 x 12.2 x 12.2 mm (excluding connector)
  • Installation: M2.5 tapping hole or adhesive
  • Weight: 4.8 to 7.6 grams depending on version
  • Operating temperature: -40° to +120°C

Download the product sheet

Log in to see the price
Login
?
Lead time: 3-4 weeks

Introduction

The B0xY31 is a miniature hardened piezoelectric triaxial accelerometer (IEPE) (IP68, shock resistance 5000 g, operating temperature -40 to 120°C) designed for vibration characterization of components and structures in the automotive, energy and aerospace industries. 5 measurement ranges are available: ± 50g, ± 100g, ± 250g, ± 500g or ± 1000g per axis, bandwidth up to 8 kHz at +/- 5%.

Spécifications

Variant B01Y31 B02Y31 B03Y31 B05Y31 B06Y31
Sensitivity 5 mV/g 10 mV/g 20 mV/g 50 mV/g 100 mV/g
Measuring range 1000g 500g 250 g 100 g 50 g
Frequency range (5%) 1 Hz to 9 kHz 1 Hz to 8 kHz 1 Hz to 8 kHz 1 Hz to 7 kHz 1 Hz to 8 kHz
Frequency range (10%) 0,5 Hz to 10 kHz 0,5 Hz to 10 kHz 0,5 Hz to 10 kHz 0,5 Hz to 9 kHz 0,5 Hz to 10 kHz
Connector 4-pin 1/4-28 4-pin 1/4-28 4-pin 1/4-28 4-pin 1/4-28 4-pin 1/4-28
Weight 4,2 grams 4,8 grams 5 grams 6,5 grams 7,6 grams
Mounting M2.5 tapped hole M2.5 tapped hole M2.5 tapped hole M2.5 tapped hole M2.5 tapped hole
Operating temperature -40 to +120°C -40 to +120°C -40 to +120°C -40 to +120°C -40 to +120°C
Resonance frequency > 70 kHz > 70 kHz > 70 kHz > 39 kHz > 35 kHz

Lightweight housing

The B0xY31 is supplied in a hardened titanium housing, resistant to corrosion and chemicals, and operating over an extended temperature range from -40°C to +120°C. The construction is hermetically welded (IP68) and can withstand shocks of up to 5000 g. The overall weight ranges from 4.8g to 7.6g depending on version (excluding connectors).

The B0xY31 is powered by a 2 to 20 mA DC current (voltage: 20-30 VDC), and is connected via a 4-pin connector. Mounting on the application is by screwing (one M2.5 central thread) or gluing. A mounting plate is included to electrically isolate the accelerometer from its support.

Dimensions

Applications

  • Modal analysis
  • Automotive testing
  • Laboratory testing
  • Vibration / shock studies
  • Frequency analysis
  • Design studies
Number of Axis
3 Axis
Technologie
Piezoelectrical
Type de produit
Accelerometer
Sensibility
10 / 5 / 20 / 50 / 100 mV/G
Etendue de mesure linéaire
500 / 50 / 100 / 250 / 1000 G
Bande passante (-3 dB)
10000 Hz
Nonlinearity (% FS)
± 1 %
Signal otuput
± 5 VDC
Température de fonctionnement
-40 to 120 °C
Protection Class
IP68
Housing
Titanium
50-500g, > 500 g

Dimensions

  • ISO-17025 calibration certificate (sensor supplied with factory certificate as standard)
  • TEDS chip
  • Datalogger
  • IEPE conditioning module
  • Cable (configurable length and connector)
