Ref: IEPE-Cable

Cable for IEPE accelerometer

Cables for IEPE accelerometers
Lengths: 3, 6 or 9m as standard, other lengths optional
Sensor connection: M3, M5, 10-32, 1/4-28
DAQ connection: bare wire, BNC, LEMO, etc...
Shielded cable
Numerous customization options
High-temperature versions available

Log in to see the price

Login

?

Delivery time : 4 weeks

Introduction

Cable for connecting a 1-axis or 3-axis accelerometer.

Configuration

A configuration is made by 4 parameters:

Cable type
Length
Sensor connection
DAQ connection

Log in to access the online configurator.

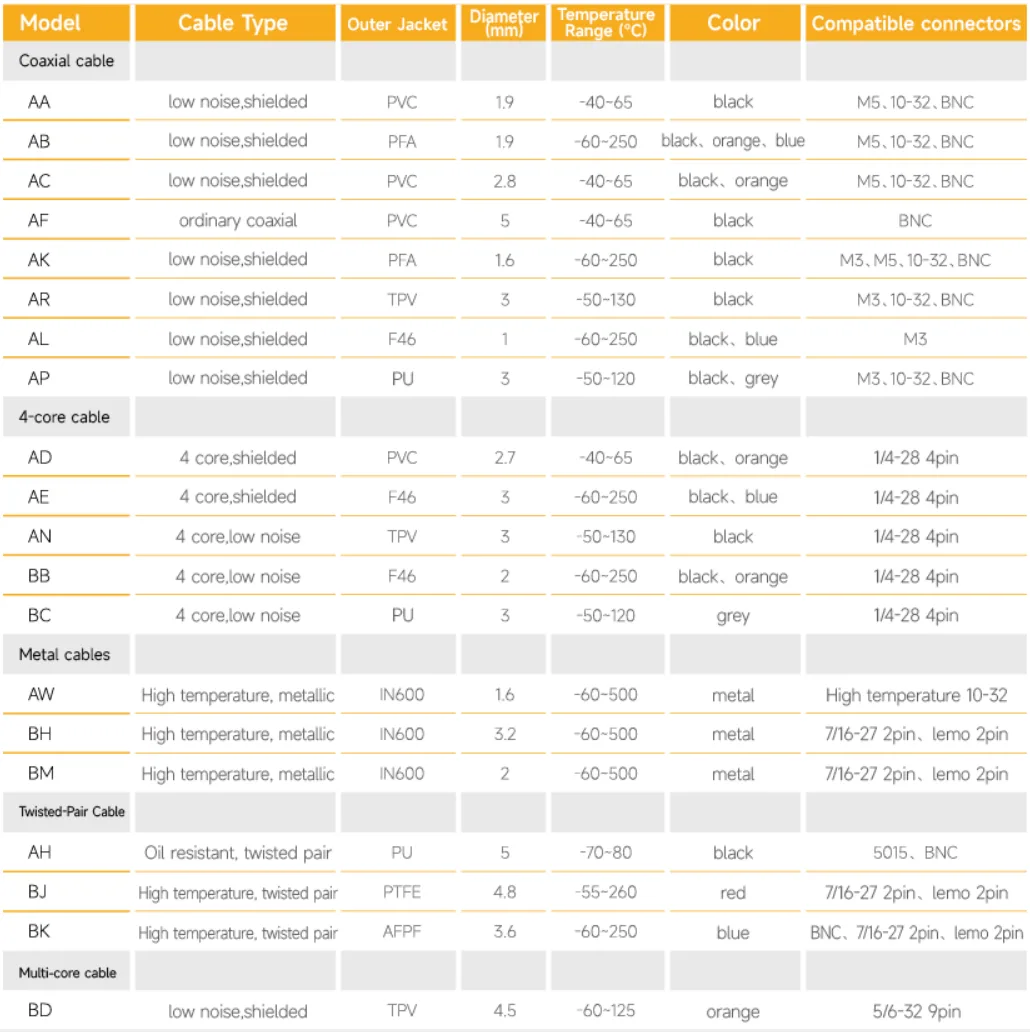

Cables

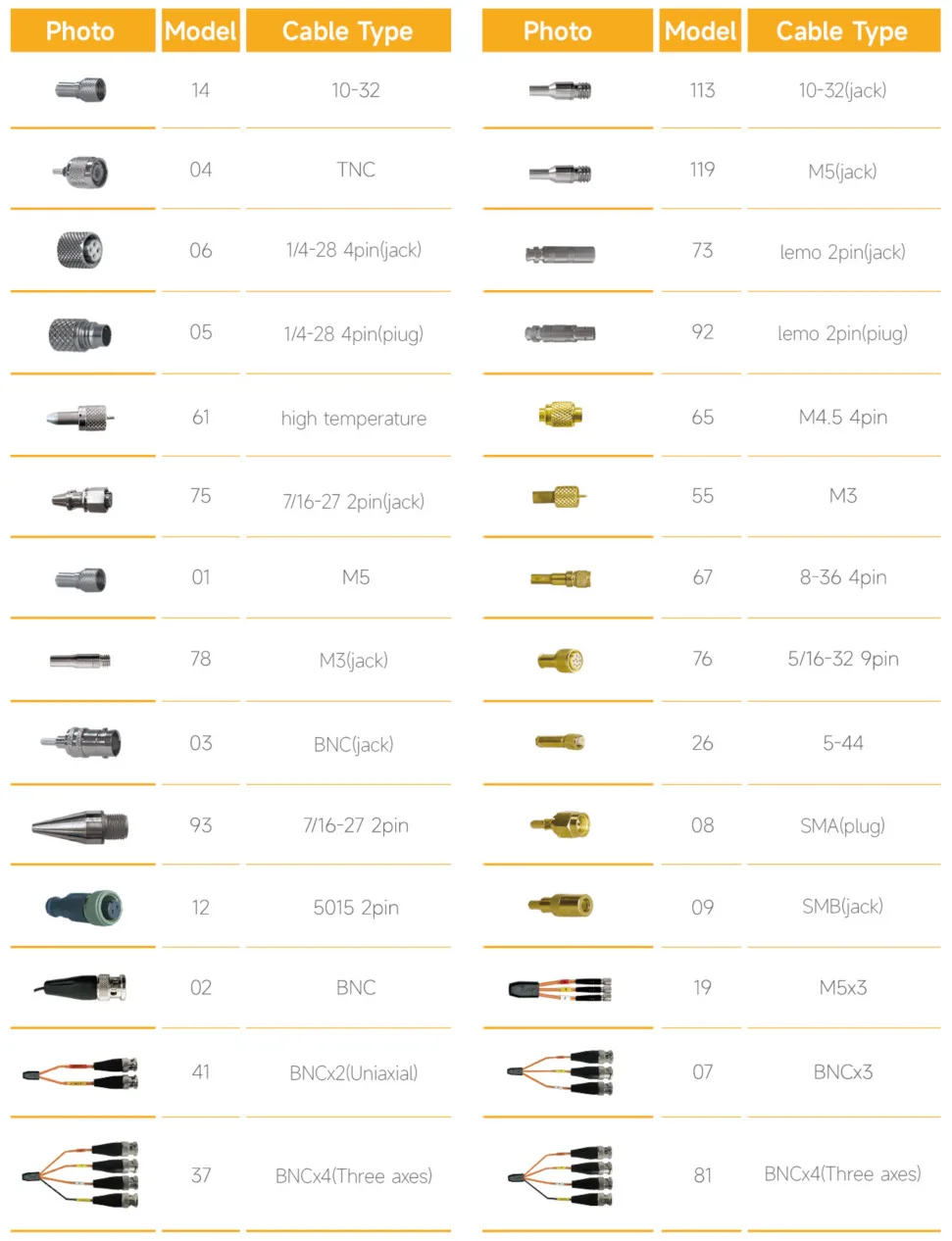

Connector

Connecteur: BNC
Cable: TBD

Connector output on DAQ side
Length
