Ref: HE-750 - IP68 | ± 500 mm | amplifié

Industrial LVDT sensor ± 500 mm - IP68 - 0-10VDC or 4-20mA output

  • Industrial LVDT sensor IP68
  • Measuring range: ± 1.25 mm to ± 500 mm
  • Power supply: 9-24VDC or 24VDC
  • Output signal: 0-10VDC or 4-20mA
  • Non-linearity: 0.25 % PE
  • Repeatability: 0.01% PE - Resolution: infinite
  • Material: Nickel-iron alloy - Tightness: IP 68
  • Humidity resistance: 90% R.H., 240 hours
  • Operating temperature: -25 °C to 85 °C
  • High temperature versions, submersible, radioactive environment, etc. ...

Download the product sheet

?

High resistance long stroke LVDT sensor

The LVDT HE-750 and HI-750 transducers are designed for instantaneous position measurement in industrial or R&D environments over measurement ranges from ± 1.25 mm to ± 500 mm.

The output signal, proportional to the position of the core inside the sensor body, is 0-10VDC (HE-750) or 4-20 mA (HI-750), which allows a direct connection to the acquisition system / PLC, without any other conditioning module. The electrical connector is directly mounted on the sensor either axially or radially. Other advantages are typical for the LVDT: excellent accuracy, infinite resolution, long life and no drift.

The sensor body is made of a high-strength nickel-iron alloy, corrosion resistant and IP68 waterproof. The vibration resistance is 20 g at 2 kHz, the operating temperature range is -25°C to +85°C.

Setup

The range

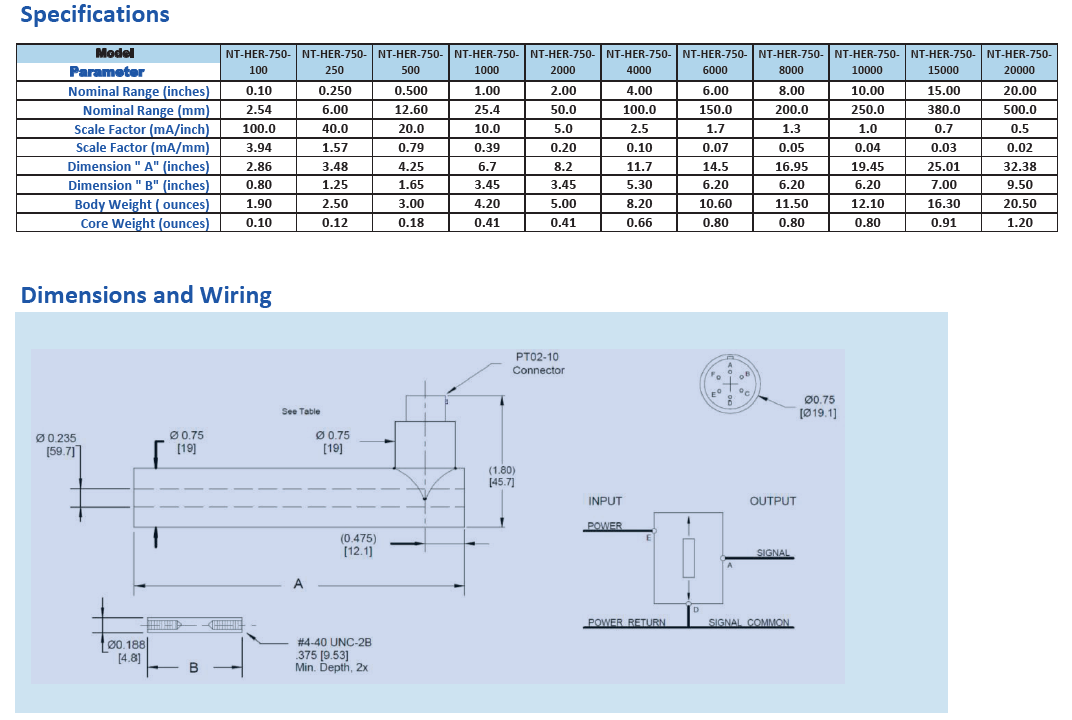

Model HE-750 HER-750 HI-750 HIR-750
Format Droit Coudé Droit Coudé
Connecteur axial radial axial radial
Température de fonctionnement -25°C - 85°C -25°C - 85°C -25°C - 85°C -25°C - 85°C
Alimentation 24VDC 24VDC 9-24VDC 9-24VDC
Signal de sortie 0-10 VDC 0-10 VDC 4-20 mA 4-20 mA

Customization

  • extension of the operating temperature range

Applications

  • Industrial metrology
  • Industrial automation
  • Packaging
  • Hydraulic machines
  • Corrisive environments
  • Position control
  • Material testing
  • Valve control
Technologie
LVDT Sensor
Etendue de mesure linéaire
2.54 / 500 mm
Measuring range
0 à ±50 mm, ±51 à ±250 mm, ± 251 à ±2 m
Nonrepeatability
0.1 % FS
Nonlinearity (% FS)
± 0.25 %
Hysteresis
0.1 % FS
Signal otuput
0-10VDC, 4-20 mA
Analog output signal
0-10 VDC
Température de fonctionnement
-25 to 85 °C
Protection Class
IP68
Tension d'alimentation
24 Vcc
Housing
Steel

Axial connector

Radial connector

  • Special calibration with non-standard measuring range,
  • Temperature compensation of the sensors.
  • Special cable; connector on the cable, waterproof feedthrough.
  • Sensor cable length
  • Data acquisition
  • Calibration micrometer
  • Thickness gauge
  • 12 or 24Vdc power supply
  • Product training and calibration technique
  • Display conditioner or conditioning electronics
