Ref: MUX-BC-12

12-channel strain gauge amplifier with CAN bus interface.

  • 12 quarter-bridge (3-wire) strain gauge amplifier unit
  • 12 strain channels IN → 1 CAN/CAN FD signal OUT
  • Software included for configuration and data recording
  • Integrated shunt resistors, software controlled
  • Gain individually adjustable, software controlled
  • Integrated bridge completion resistors
  • Ideal for high channel count rotating strain measurements
  • Measure up to 48 strain channels by stacking four MUX-BC-12 units
  • For rotating applications, pair with a Michigan Scientific four connection slip ring (S4)

Back to the strain gage amplifiers portfolio

Download the product sheet

?
2-4 weeks

Description

The Michigan Scientific’s MUX-BC-12 is a twelve channel strain gauge amplifier and multiplexing unit. Each of the six radial connectors can mate with two 3-wire hook-up quarter arm strain gauges. The MUX-BC-12 provides bridge completion, bridge excitation, amplification, and digitization of the signals.

The MUX-BC-12 has four output connections: two for power, and two for CAN/CAN FD. The output data is CAN 2.0 or CAN FD compatible. A shunt calibration can be initiated at power-up or initiated by user with the MUX configuration software. Additionally, the software allows for independent channel configuration and data recording to a PC.

MUX-BC-12 can be used for spinning application up to 12000 rpm by pairing it with a slip ring model S4.

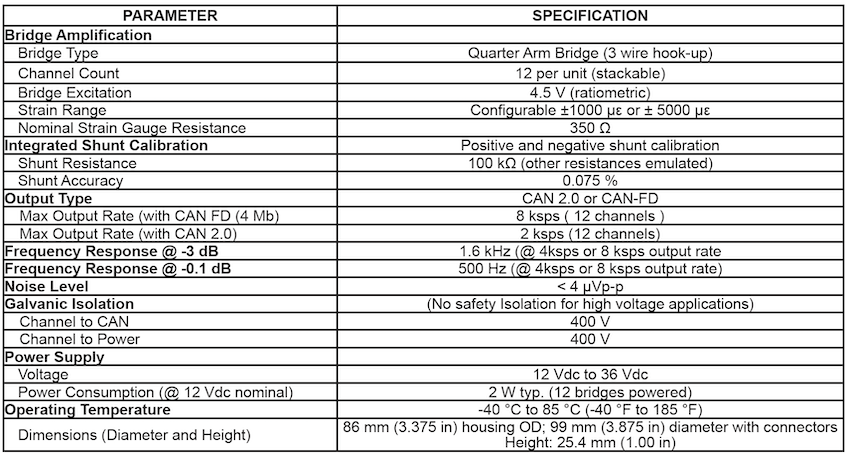

Specification

Configuration

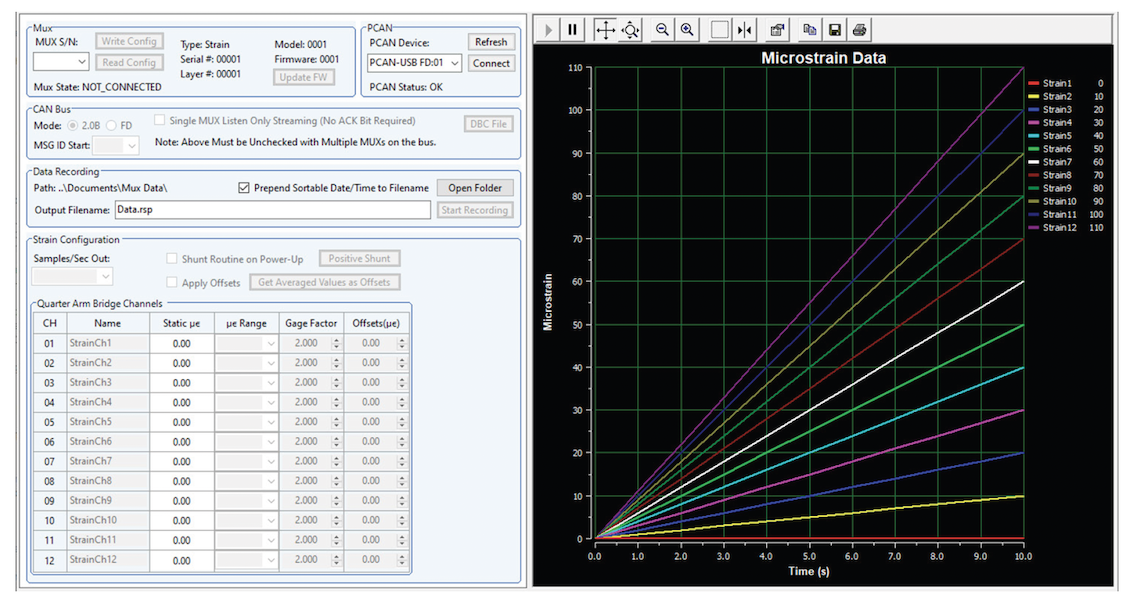

A software is provided for the configuration and simple data acquisition. The connection to the PC can be completed by an optional CAN to USB converter.

Available models

MUX-BC12 is the 1st of a series of high performance rugged amplifiers which can be used on spinning applications.

Models Channels Type of input
MUX-BC-12 12 quarter-bridge strain gage
MUX-TC-12 12 Thermocouple

Applications

  • material testing
  • Vehicle testing
  • Compressor, alternator, DC engine testing
  • engine structural validation in automotive
  • shaft structural testing in agriculture
  • shaft deformations in aerospace
Electronic type
Signal Conditioning, Amplifier for Slip Ring
Input channels
12
Input signal type
SG bridge
Digital output signal
CAN
Datalogger
no
Tension d'alimentation
10 Vcc
Connecteur
Connectors
Protection Class
IP65
Housing
Aluminium

Dimensions

37.5 x 8 x 15.2 mm

  • Bandwidth increase
  • Housing for Slip ring
  • Power supply unit
  • Display
