Ref: TS 91V1 | TS 92V1

Ruggedized MEMS Capacitive Tilt Sensors - Uni or biaxial - IP67

  • Range: ±15°, ±90°
  • Uniaxial / Biaxial
  • 4 / 8 Wire System
  • DC Response
  • High Resolution
  • Low Temperature Coefficient of Bias
  • Excellent Long-Term
  • Bias Stability
  • Wide Temperature Range
  • High Shock Limit
  • Protection Class IP67
  • Anodised Aluminium Housing (78g)

Download the product sheet

?

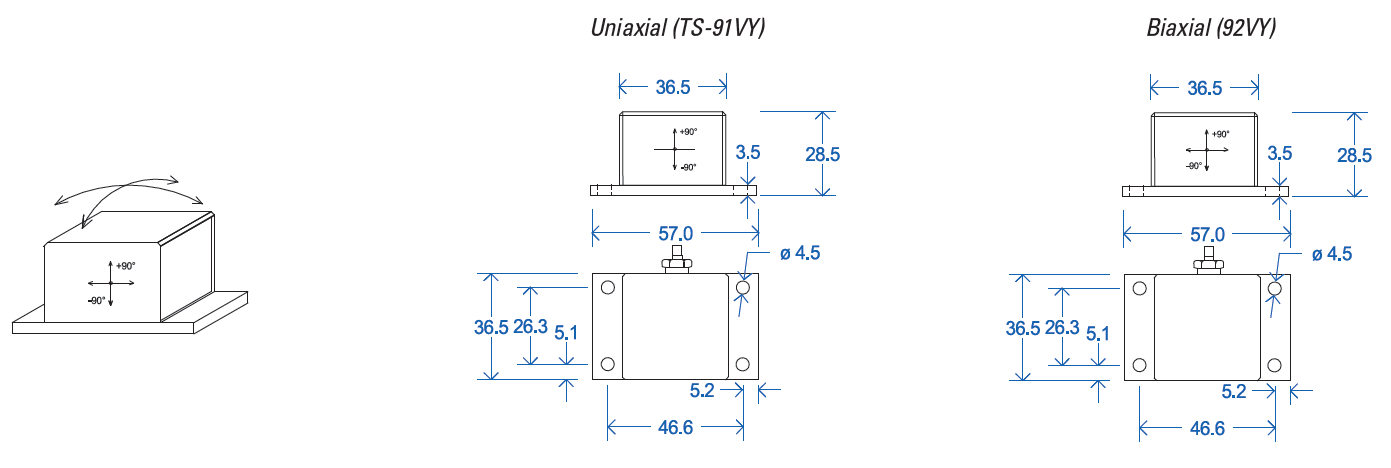

Presentation

TS-91V1 and TS-92V1 Tilt sensors feature an analog voltage output and are available in two versions, uniaxial and biaxial. Biaxial tilt sensors contain two independent MEMS sensors oriented at 90° to each other to allow perpendicular tilt measurement. ASC’s tilt sensors feature either a light-weight anodized aluminium housing, which provides case isolation against ground loops. The sensor sensitivity and bias is extremely stable over a wide temperature range from -40°C to +120°C.

The sensors TS-91V1 and TS-92V1 can be powered using a 6-36 VDC supply, where the output is independent of the supply. ASC’s tilt sensors can withstand shocks as 5000g and feature an aluminium housing (78g) with an integral cable. The sensors can be configured with a 4-20 mA current output as an option, by a temperature range from -20 to +70°C.

Applications

  • Crane Safety Systems
  • Building Construction Machines
  • Solar Array Tracking Systems
  • Ship’s Navigation Posture Measurement
  • Flap Bridge Monitoring
  • Track Alignment & Maintenance
  • Wheel Alignment
  • Truck Chassis Levelling
  • Machine Tool Angle Positioning
Technologie
MEMS capacitive
Number of Axis
1 Axis, 2 Axis
Etendue de mesure
15 / 90 °
Résolution
0.001° - 0.01°
Application
OEM
Nonlinearity (% FS)
± 1 %
Sortie analogique
analog (Voltage)
Analog output signal
± 5 VDC
Digital output signal
none
Tension d'alimentation
10 Vcc
Protection Class
IP67
Housing
Aluminium

Cable and connectors

Acquisition system
