Compact, low cost, IP40, 0-1250mm wire rope position sensor with analog and digital outputs
- Low-cost potentiometric cable displacement sensor
- Measuring range: from 50mm to 1250mm
- Output signal: ratiometric (30 volts max) or incremental encoder
- Linearity: ±0.1% (LX-EP) or (±0.25% to 1%) of full scale (LX-PA)
- Repeatability: ± 0.03% Full Scale
- Sensor body: Thermoplastic
- Protection: IP 40
- Temperature: -25°C to 75°C
- Lifetime: 125,000 to 2,000,000 complete cycles (depending on range and model)
Introduction
The LX series of cable displacement transducers are designed for linear displacement measurement in industrial environments over strokes from 0 to 1250 mm. With a robust, compact and economical thermoplastic design, the LX series of cable sensors is ideally suited for OEM projects.
2 models are available: LX-PA with analogue output and LX-EP with digital output. Eleven measuring ranges are available, from 50mm to 1250mm.
Specifications
| LX-EP | LX-PA | |
|---|---|---|
| measuring range | 50mm / 70mm / 96mm / 120mm / 250mm / 390mm / 500mm / 640mm / 750mm / 1000mm / 1250mm | 50mm / 70mm / 96mm / 120mm / 250mm / 390mm / 500mm / 640mm / 750mm / 1000mm / 1250mm |
| Measurement principle | Incremental angle encoder | Potentiometer |
| Resolution | 0,2 to 0,5 mm | infinite |
| non-linearity | 0,10% | 0,25 to 1% |
| Lifetime (no. of cycles) | 1 to 2 Millions | 125000 to 1 million |
| Supply voltage | 5.00 ± 0.25 VDC | 1 - 30 VDC |
| Output signal | 2 TTL signals in quadrature, collector, with 5.4KΩ pull-up resistor | 24.8 mV/mm x Supply voltage |
| Operating temperature | -40° C to 75° C | -25° C to 100° C |
| Bandwidth | TBD | TBD |
| Weight | 85 g | 85 g |

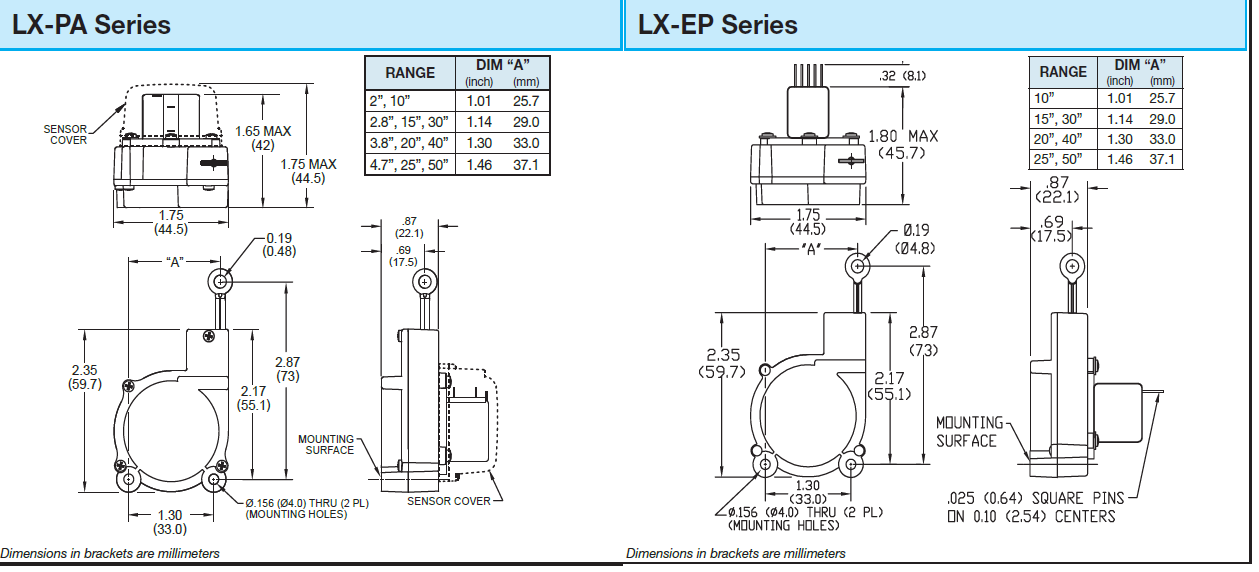

Installation
The cable is directly or indirectly linked to the displacement to be measured, which allows for non-normal or non-linear displacement. The measurement can be offset by cable extensions. The cable sensor is not necessarily aligned with the displacement.
The standard terminal block can be replaced by an optional connector or cable. The cable end can be customised to facilitate integration with the desired application.

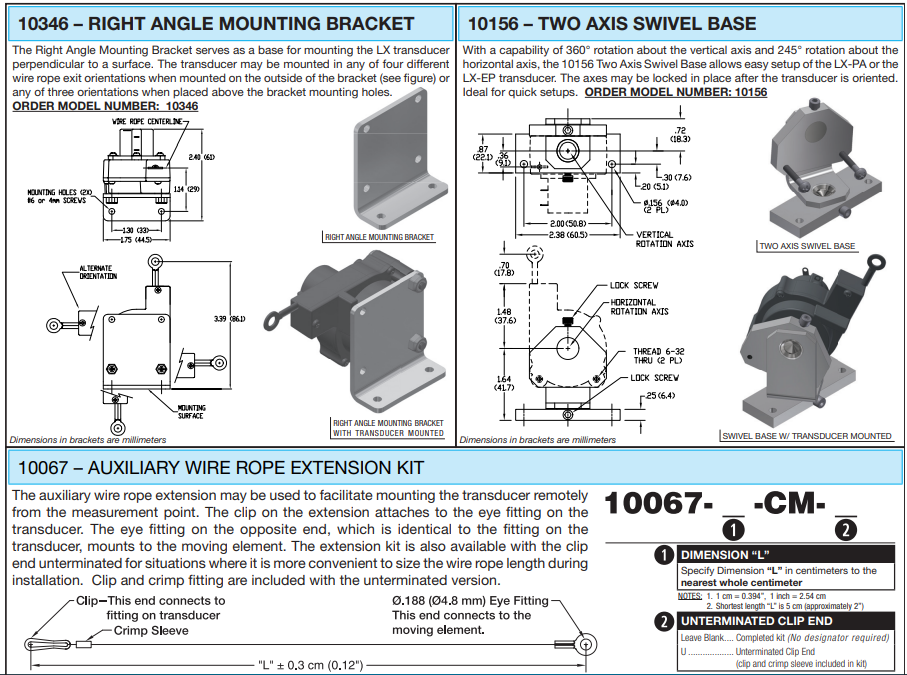

Mounting accessories are also available.
Applications
The LX series sensors are recommended for :
- OEM development projects
- integration in limited spaces, applications that require a very small sensor
- Automotive, speed and acceleration testing
- suspension travel measurements
- any other industrial application (test bench, lifting, handling) or robotics
- Technologie
- Wire rope Position
- Etendue de mesure linéaire
- 50 / 70 / 96 / 120 / 250 / 390 / 500 / 640 / 750 / 1000 / 1250 mm
- Measuring range
- ±51 à ±250 mm, ± 251 à ±2 m
- Nonrepeatability
- 0.03 % FS
- Nonlinearity (% FS)
- ± 1 , 0.5 , 0.25 %
- Bande passante (-3 dB)
- 10 Hz
- Analog output signal
- non-amplifié, Codeur Incrémental
- Température de fonctionnement
- -25 to 75 °C
- Protection Class
- IP40
- Tension d'alimentation
- 10 Vcc
- Housing
- Plastic
Datasheet_LX-SERIES_pmi_EN.pdf
| Type of option | Available specifications |
|---|---|
| Measuring range | 50mm / 70mm / 96mm / 120mm / 250mm / 390mm / 500mm / 640mm / 750mm / 1000mm / 1250mm |
| Prestations | Calibration / Wiring |
| Materials | Stainless steel cable in a nylon sheath |
| Length of electrical cable | 15cm to 5m |
| Application cable connector (Mating) | Supplied with or without |
| Changes / Additions | Windscreen wiper / Non-standard potentiometer / Cable voltage reduction or increase / Inverted output |
| Type of cable attachment | Pierced ring / Fasteners |
