Ref: B00AG/CG

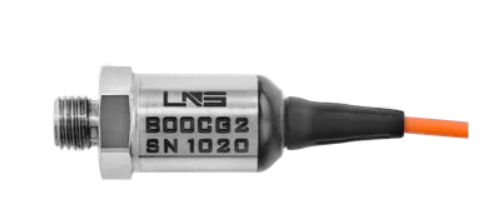

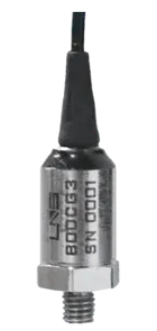

Single-axis IEPE accelerometer - Shock measurement ± 2500 to ± 30000g

  • Single-axis accelerometer IEPE (Integrated Electronic Piezoelectric)
  • Applications: impact testing, drop testing
  • Measurement range: ± 2500, ± 5000, ±10000, ±20000 or ± 30000g
  • Bandwidth (±10%): from 2 Hz to 13 kHz
  • Sensitivity: 0.17 mV/g to 2 mV/g
  • Connection: 2-pin 10-32 or M5 connector (AG), or cable (CG)
  • Mounting: 10-32 or M5 threaded hole
  • Power supply: 2-20 mA @ 20-30 VDC
  • Construction: IP68 stainless steel
  • Dimensions: HEX11 x 20.70 mm
  • Operating temperature : -50° to +120°C

Download the product sheet

Log in to see the price
Login
?
Generally available within 3 weeks

Introduction

The B00AG / B00CG series are single-axis piezoelectric accelerometers (IEPE) designed for shock measurement. Available in 5 ranges (± 2500, ± 5000, ±10000, ±20000 or ± 30000g). Sensors are screw-fastened (M5 or 10-32). Choice of connector or cable outlet. Ideal for measuring intense impacts / drop tests.

Specifications

Variant B00AG5 B00AG3 B00AG4 B00AG1
Sensitivity 0,17 mV/g 0,25 mV/g 0,5 mV/g 1 mV/g
Measuring range ±30 000 g ±20 000 g ±10 000 g ±5000 g
Resolution 0,05 grms 0,04 grms 0,02 grms 0,01 grms
Frequency range (10%) 10-11k Hz 10-11k Hz 10-11k Hz 5-11k Hz
Resonance frequency > 70 kHz > 70 kHz > 70 kHz > 60 kHz
Connector 10-32 or M5 10-32 or M5 10-32 or M5 10-32 or M5
Mounting 10-32 or M5 10-32 or M5 10-32 or M5 10-32 or M5
Weight 7,7 grams 7,7 grams 7,7 grams 7,7 grams
Dimensions HEX 11 x 24,9 mm HEX 11 x 24,9 mm HEX 11 x 24,9 mm HEX 11 x 24,9 mm
Variant B00CG6 B00CG1 B00CG2 B00CG3
Sensitivity 0,1 mV/g 0,25 mV/g 0,5 mV/g 1 mV/g
Measuring range ±50 000 g ±20 000 g ±10 000 g ±5000 g
Resolution 0,1 grms 0,04 grms 0,02 grms 0,01 grms
Frequency range (10%) 10-15k Hz 10-11k Hz 10-11k Hz 5-11k Hz
Resonance frequency > 100 kHz > 70 kHz > 70 kHz > 60 kHz
Connector Integrated cable Integrated cable Integrated cable Integrated cable
Mounting 10-32 or M5 10-32 or M5 10-32 or M5 10-32 or M5
Weight 10 grams 10 grams 10 grams 10 grams
Dimensions HEX 11 x 33,5 mm HEX 11 x 33,5 mm HEX 11 x 33,5 mm HEX 11 x 33,5 mm

Dimensions

Diemensions for connector version (B00AGX) :

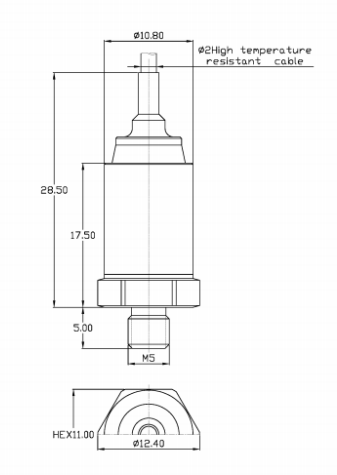

Dimensions for integrated cable version (B00CGX) :

Applications

  • Impact testing
  • Pyrotechnics
  • Drop tests
Number of Axis
1 Axis
Technologie
Piezoelectrical
Type de produit
Accelerometer
Etendue de mesure linéaire
30000 / 2500 / 5000 / 10000 / 20000 G
Signal otuput
± 5 VDC
Température de fonctionnement
-50 to 120 °C
Housing
Titanium
> 500 g
Application
Impact

Dimensions

  • ISO-17025 calibration certificate (sensor supplied with factory certificate as standard)
  • Connector (10-32 or M5) or integrated cable
  • Mounting: 10-32 or M5 threaded hole
  • Measuring ranges: 30,000 g | 20,000 g | 10,000 g | 5000 g | 2500 g |
  • Datalogger
  • IEPE conditioning module
