S-type load cell | High temperature | ±200 N to ±1 kN | IP65

S-type tension/compression load cell
Measuring ranges: ±200 N / ±500 N / ±1 kN
Non-linearity: ±0.05%
Operating temperature: -50 to +160 °C
Temperature compensation: -10 to +45 °C
Non-repeatability: 0.05% FS
Low temperature sensitivity: 0.0015% FS
Overload protection: 150%
Output: 3 mV/V
Installation: 2 threaded holes M6x1-6H
Optional rod ends available

Lead time : 4-12 weeks

Overview

The SSM-FDH model is a precision sealed S-Beam force sensor that can be used up to 160°C, featuring a very low temperature sensitivity of 0.015% FS/°C and temperature compensation from -10 to 45°C. The SSM-FDH is available in several measurement ranges: ±200 N / ±500 N / ±1 kN.

The non-linearity is 0.05% of full scale for a sensitivity of 3 mV/V.

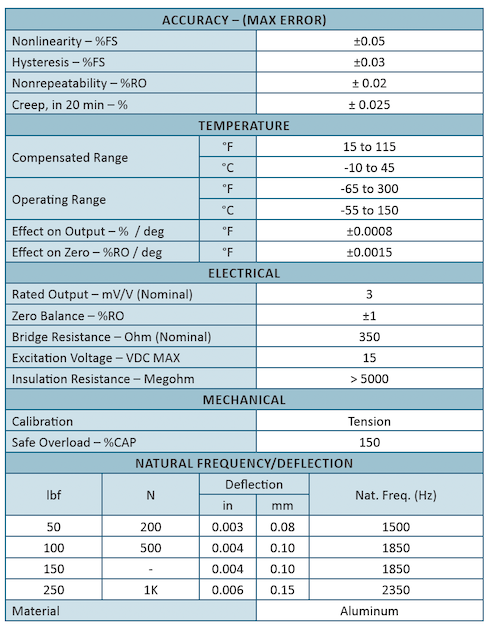

Specifications

Installation

The force is applied through two threaded holes M6 on either side of the sensor, depending on the measurement range. The SSM-FDH sensor is supplied with a 2 m cable, and the compensated operating temperature range is from -10 °C to +45 °C.

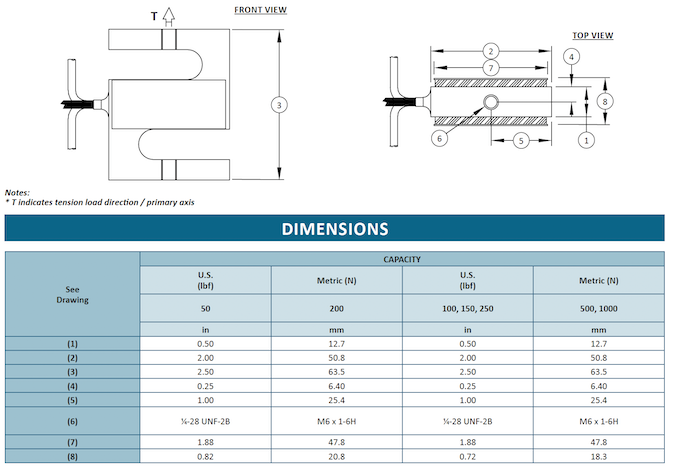

Dimensions

Signal conditionning and acquisition

SSM-FDH S-beam load cell requires an excitation voltage comprised between 5 and 10 Vdc. Displays, Amplifiers and Data acquisition modules are offered wherever needed.

Refer also to selection below:

GSV-2TSDI	MICRA-M	PMI-520AJ	GSV-1A	GSV-6K	GSV-6L	GSV-3USB
24-bit display with acquisition function	Display, 5 Digits	High accuracy analog amplifier, Rail Din	IP66 1-channel amplifier, Voltage or current output	In-line miniature amplifier, voltage / current output	Miniature PCB amplifier for OEM applications	Data acquisition module with USB interface
