Ref: DiSens MD - Triaxe - EtherCAT

Triaxial Capacitive Accelerometer - EtherCAT - ±2g to ±8g - DEWESoft X3 included

  • Triaxial digital capacitive Accelerometer
  • Measuring Range ± 2g to ± 8g
  • Output signal : EtherCAT
  • Power supply : 12 à 48 Vcc
  • Bandwidth : 1kHz
  • Sampling Rate : 4kHz
  • Operating Temperature Range : - 40 à + 85 °C
  • Data Acquisition Software DeweSoft X3 included - no additional hardware needed
  • Accuracy : < 0.5% FSO
  • High shock limit

Download the product sheet

?

The ASC DiSens® series is a novel ASC sensor solution with digital interfaces. It combines high-quality sensors with an integrated data acquisition system, so that separate data acquisition is no longer necessary.

Due to the transmission of digital data, many interferences no longer play a role, which is particularly important for long cable lengths. The series begins with the new MD model, a triaxial digital accelerometer. The sensor has 2g, 4g and 8g measurement ranges, which are set via the integrated software.

The acceleration values are transmitted as raw data via the EtherCAT protocol to a host system. There they are processed by a separate analysis software. With an active power supply, up to 12 devices can be connected via daisy chaining.

The included DEWESoft X3 software package provides many advantages for the daily test and measurement work such as time savings and easy recording, analysis and reporting.

Applications

  • Structural Health Monitoring
  • Bridge Monitoring
  • Seismic Measurements
  • Mobile Network Antenna Structural Monitoring
  • Vibration Monitoring on Construction Machines
  • Condition Monitoring on Machines and Equipment
Technologie
MEMS capacitive
Type de produit
Accelerometer
Number of Axis
3 Axis
Etendue de mesure linéaire
2 / 4 / 8 G
Bande passante (-3 dB)
1000 Hz
Sortie analogique
Ethernet
Tension d'alimentation
10 Vcc
Température de fonctionnement
-20 to 60 °C
Connecteur
RJ45
Protection Class
IP40
Housing
Aluminium
0-5 g, 5-50g
Remarque
Sample Rate : 4kHz

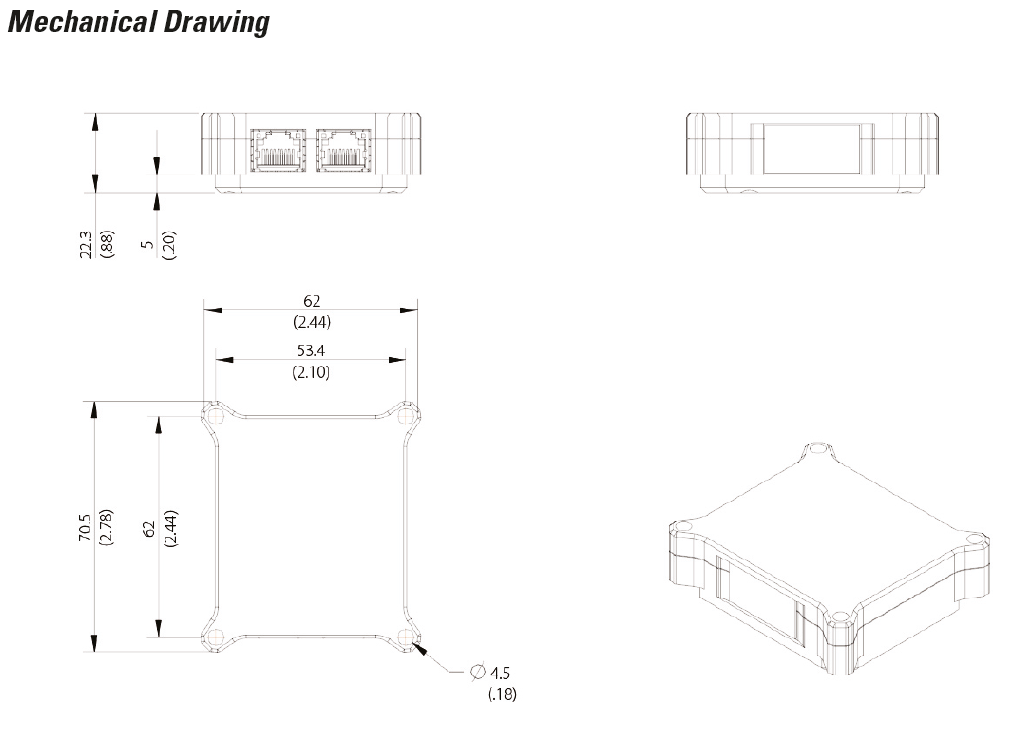

Dimensions

  • Cable
  • EtherCAT based data acquisition system
