Ref: B09Y36 | B10Y35

IEPE triaxial accelerometer - High sensitivity

  • IEPE (Integrated Electronic Piezoelectric) triaxial accelerometer
  • High sensitivity: 500 mV/g and 1000 mV/g
  • Measuring ranges: ± 10g to ±5g
  • Bandwidth +/- 5%: 0.5 Hz to 5 kHz (8 kHz optional)
  • Connections: 4-pin 1/4-28 connector
  • Operating temperature: -40° to +120°C
  • Dimensions: 19.7 mm cube
  • Mounting: 10-32 threaded hole

Download the product sheet

?
Lead time: 3-4 weeks

Introduction

The B09Y35/B10Y36 series are triaxial piezoelectric accelerometers (IEPE) with high sensitivity (500 mV/g and 1000 mV/g). They are designed for testing at low acceleration levels (± 10g to +/-5g). Mounting is via a tapped hole 10-32

Spécifications

Variant B09Y35 B09Y36 B10Y35 B10Y36
Sensitivity 500 mV/g 500 mV/g 1000 mV/g 1000 mV/g
Measurement range ± 10g ± 10g ± 5g ± 5g
Resolution 0.00002 grms 0.00002 grms 0.00001 grms 0.00001 grms
Frequency range (5%) 0.5 Hz to 5 kHz 0.5 Hz to 8 kHz 0.5 to 5 kHz 0.5 Hz to 8 kHz
Frequency range(10%) 0.3 Hz tp 6 kHz 0.3 Hz to 10 kHz 0.3 Hz to 6 kHz 0.3 Hz to 10 kHz
Connector 4-pin 1/4-28 4-pin 1/4-28 4-pin 1/4-28 4-pin 1/4-28
Weight 37 grams 37 grams 37 grams 37 grams
Mounting 10-32 tapped hole 10-32 tapped hole 10-32 tapped hole 10-32 tapped hole
Operating temperature -40 to +120°C -40 to +120°C -40 to +120°C -40 to +120°C
Resonance frequency > 32 kHz > 32 kHz > 32 kHz > 32 kHz

Dimensions

Applications

  • Low amplitude measurements
  • Bridge testing
Number of Axis
3 Axis
Technologie
Piezoelectrical
Type de produit
Accelerometer
Sensibility
1000 / 500 mV/G
Etendue de mesure linéaire
5 / 10 G
Bande passante (-3 dB)
8000 Hz
Nonlinearity (% FS)
± 1 %
Signal otuput
± 5 VDC
Température de fonctionnement
-50 to 120 °C
Protection Class
IP68
Housing
Titanium
50-500g
Application
Seismic

Dimensions

  • ISO-17025 calibration certificate (sensor supplied with factory certificate as standard)
  • Datalogger
  • IEPE conditioning module
  • Cable (configurable length and connector)

Related products

B02Y36 - 3-axis IEPE accelerometer - ±50g à ±2000g

B02Y36

3-axis IEPE accelerometer - ±50g à ±2000g
G01B02 - IEPE multi-channel conditioner

G01B02

IEPE multi-channel conditioner

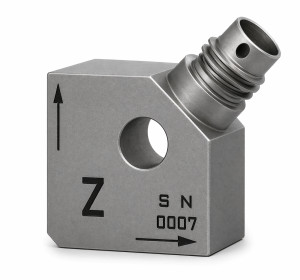

B02Y41 / B06Y41 - IEPE triaxial through-hole accelerometer - 50 to 1000g
