Industrial ICP accelerometer +/-50G
- Single-axis accelerometer IEPE (Integrated Electronic Piezoelectric)
- Industrial applications
- Measurement range: ± 50g
- Sensitivity: 100 mV/g
- Bandwidth ±5%: 1-8k Hz
- Connectors: 2-pin MIL-C-5015 connector
- Resonance frequency: > 27k Hz
- Mounting: 10-32 or M5 tapped hole
- Weight: 58 grams
- Operating temperature: -40° to +120°C
- Other versions available: +/- 20g ; +/- 10g ; +/- 5g ;
Introduction

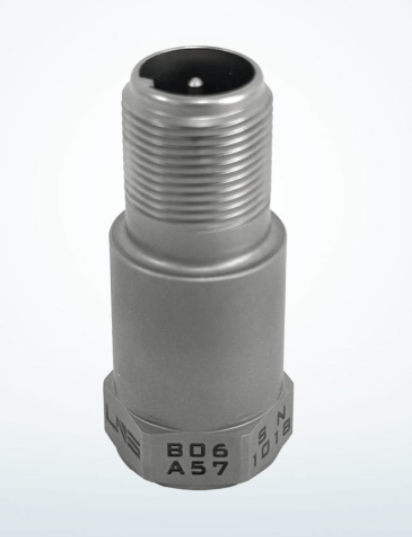

The B06A57 is a single-axis piezoelectric accelerometer (IEPE) for industrial applications. Sensitivity is 100 mV/g (+/- 50g range) and frequency response (+/- 5%) is 0.5 Hz to 10 kHz. The accelerometer is designed for vibration characterization of components, and monitoring of bearings or turbines.
SpEcifications
Variant | B06A57 | B07A57 | B09A57 | B10A57 |
---|---|---|---|---|
Sensitivity | 100 mV/g | 250 mV/g | 500 mV/g | 1000 mV/g |
Measurement range | 50g | 20g | 10g | 5g |
Frequency range (5%) | 1 Hz to 8 kHz | 1 Hz to 8 kHz | 0,5 Hz to 5 kHz | 0,5 Hz to 4 kHz |
Frequency range (10%) | 0,5 Hz to 10 kHz | 0,5 Hz to 10 kHz | 0,2 Hz to 6 kHz | 0,2 Hz to 5 kHz |
Connector | 2-pin MIL-C-5015 | 2-pin MIL-C-5015 | 2-pin MIL-C-5015 | 2-pin MIL-C-5015 |
Weight | 58.5 g | 58.5 g | 58.5 g | 58.5 g |
Dimensions | ⌀19.5 x 46.5 mm | ⌀19.5 x 46.5 mm | ⌀19.5 x 46.5 mm | ⌀19.5 x 46.5 mm |
Mounting | 10-32 or M5 tapped hole | 10-32 or M5 tapped hole | 10-32 or M5 tapped hole | 10-32 or M5 tapped hole |
Operating temperature | -40 to +120°C | -40 to +120°C | -40 to +120°C | -40 to +120°C |
Resonance frequency | > 27 kHz | > 27 kHz | > 27 kHz | > 27 kHz |
Housing
The B06A57 comes in a hardened, corrosion- and chemical-resistant stainless steel housing, and operates over a wide temperature range from -40°C to +120°C. The construction is hermetically welded (IP68) and can withstand shocks of up to 1000 g.
The B06A57 is powered by a 2 to 20 mA DC current (voltage: 20-30 VDC), connected via a 2-pin MIL connector. Mounting on the structure is by screw (M5 or 10-32).
Dimensions
Applications
- Industrial
- Bearing monitoring
- Number of Axis
- 1 Axis
- Technologie
- Piezoelectrical
- Type de produit
- Accelerometer
- Sensibility
- 100 mV/G
- Etendue de mesure linéaire
- 50 G
- Bande passante (-3 dB)
- 8000 Hz
- Nonlinearity (% FS)
- ± 1 %
- Signal otuput
- ± 5 VDC
- Température de fonctionnement
- -40 to 120 °C
- Housing
- Stainless Steel
- 5-50g
Dimensions
- ISO-17025 calibration certificate (factory certificate supplied as standard)
- Measuring range
- Datalogger
- IEPE conditioning module
- Cable (configurable length and connector)
