IP68 low profile load cell – ±200N to ±5kN

Overview

The CLP force sensor measures tensile and compressive forces dynamically with high precision (0.2% of full scale) and minimal footprint (only 25.4 mm in height). Available in 5 capacity versions ranging from 200 N to 5 kN, the CLP features a hermetic and robust design (stainless steel, IP68, 150% overload protection) and an operating temperature range of -10 to 85°C.

The CLP offers two key advantages:

• Transverse force compensation: An internal multi-beam design compensates for transverse forces, ensuring reliable measurement of non-axial loads.
• IP68 hermetic design for outdoor use, test tanks, etc.

Specifications

Installation

Force is applied via an M8 or M12 thread. Six smooth 6.6 mm diameter holes allow sensor mounting to the test bench or frame.

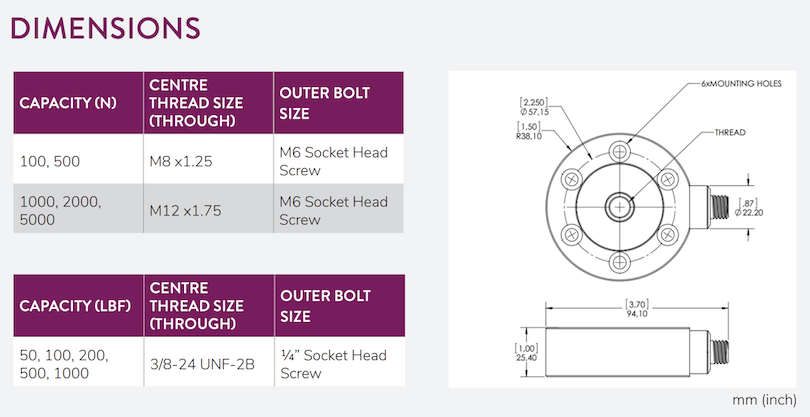

Dimensions

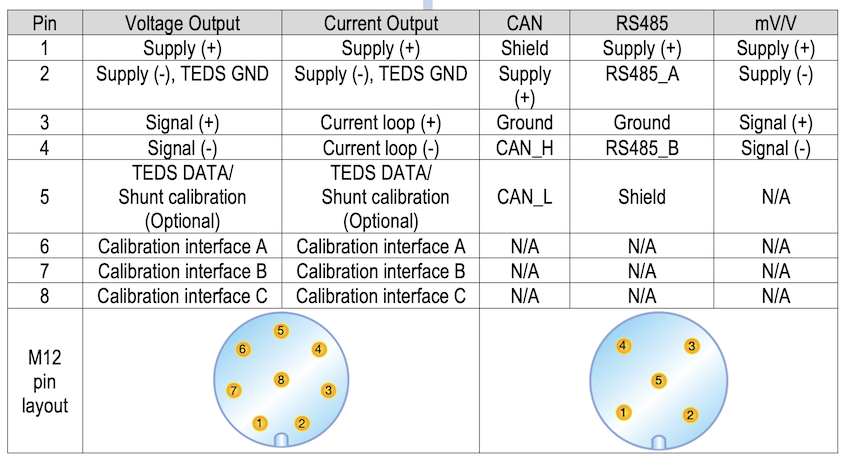

Wiring

Signal Conditioning and Acquisition

Internal Signal Conditioning

The CLP force sensor can be supplied with integrated conditioning. This option allows users to electronically adjust gain and offset (span and zero), ensuring maximum flexibility for their application. Available outputs: CAN, RS-485, 4-20 mA, ±10 V.

• Advantages: Simplified mechanical and electrical integration. Fieldbus facilitates installation and operation without a DAQ system.
• Disadvantages: Limited bandwidth, and while the miniature electronics are good, they may be less precise than high-end external electronics, particularly at very low loads.

External Signal Conditioning

The CLP force sensor is powered by 2.5 to 10 VDC. A complete, configured measurement chain can be obtained by adding a display, conditioner, or acquisition module:

Display	Display	Analog Conditioner	Analog Conditioner	Analog Conditioner	Analog Conditioner	Acquisition Module
GSV-2TSDI	MICRA-M	PMI-520AJ	GSV-1A	GSV-6K	GSV-6L	GSV-3USB
24-bit display with acquisition function	Simple display with alarms	Precision analog conditioner with voltage or current output	IP66 analog conditioner, ±10 V, 4-20 mA, or 12±8 mA output	In-line conditioner, ±10 V, 4-20 mA, or 12±8 mA output	Miniature PCB conditioner, ±10 V, 4-20 mA, or 12±8 mA output	USB acquisition module

Applications

• Dynamic force measurement
• Preload measurement on bolted assemblies
• Tensile testing
• Material testing
• Instrumentation of tensile testing machines

Options and Accessories

• Extended temperature compensation
• Cable length
• Calibration
• TEDS plug
• Conditioning module
• Display
• Acquisition system

Dimensions

Connections

Configuration Options

• Cable length
• Custom connector
• Extended temperature compensation

Signal Conditioner / Display

• 1-channel signal conditioner: GSV-6K (inline), GSV-1H (DIN rail), GSV-1M (IP67), or GSV-6L (miniature)
• 1-channel display: TRA-240 (basic) or GSV-2MSDI (with standalone data logger function)
• Desktop signal conditioner/display: GSV-2TSDI
• 4-channel signal conditioner: GSV-1A4

Data Acquisition Module

• 1-channel: GSV-2AS (RS-232/485 or CANopen) or GSV-3USB (1 or 2-channel USB)
• 4-channel: GSV-4USB (USB)
• 8-channel: GSV-8DS (LAN/WiFi/USB/EtherCAT/CAN/RS-232)

Connectivity

• 1.5 m connection cable with loose connectors
