Ref: LIPS P100

Inductive displacement sensor for cylinders - 5 to 800 mm - ATEX option

  • Type: Displacement measurement - cylinder position
  • Measuring range: 0 to 800 mm
  • Construction: Steel
  • Protection: IP 65/67
  • Operating temperature: -40 °C to 125 °C
  • Frequency response: 10 kHz
  • Output: voltage or current

Download the product sheet

?

Introduction

The inductive sensor P100 has a measuring range of 10 mm to 800 mm. This sensor is used for displacement or position measurement of hydraulic or pneumatic cylinders. The inductive displacement sensors are easy and economical to use for precise and complex displacement or position measurement. The measuring range varies from 5 mm to 800 mm in 10 mm steps. The integration into the application is facilitated by numerous options for the analog output e.g. 0.5 to 4.5 VDC, ± 5VDC or 4-20mA. The sensor can be supplied with 5VDC, 24VDC or with a bipolar supply in ± 5VDC or ± 15VDC. The P100 has a very good linearity and an infinite resolution. The bandwidth is 10 kHz.

Mounting and measuring principle

The measurement is made without contact between the fixed part and the moving part, by induction, allowing a very high number of cycles MTBF > 350 000 hours. The sensor is directly screwed on the head of the cylinder and ensures the sealing of the cylinder by an adapted seal. The measurement signal and the power supply of the sensor are carried by a cable, directly at the output of the sensor, or by a connector supplied with the sensors.

Applications

The LIPS P100 sensor is recommended for:

  • Displacement measurement of pneumatic cylinders
  • Cylinder position
  • Displacement and regulation control.
  • Monitoring of hydraulic cylinder position
  • Actuators on construction machines

Possible P101 options

Signal Alimentation Charge
0.5-4.5 Vcc Ratiomètrique + 5Vcc ± 0.5 Vcc, 10 mA 5kΩ min
0.5-4.5 Vcc +24Vcc ou + 9-28Vcc -10 mA 5kΩ min
± 5 Vcc ± 15 Vcc ou ± 9-28 Vcc - 10 mA 5kΩ min
0.5-9.5 Vcc +24Vcc ou + 9-28Vcc -10 mA 5kΩ min
± 10 Vcc ± 15 Vcc ou ± 13.5-28 Vcc 5kΩ min
4-20 mA (2 files) +24Vcc ou + 18-28Vcc -10 mA 300Ω min
4-20 mA (3 files) +24Vcc ou + 18-28Vcc -10 mA 950Ω min
Technologie
Linear inductive
Etendue de mesure linéaire
800 / 5 / 50 / 100 / 150 / 200 / 250 / 300 / 350 / 400 / 450 / 500 / 550 / 600 / 650 / 700 / 750 mm
Measuring range
0 à ±50 mm, ±51 à ±250 mm, ± 251 à ±2 m
Nonlinearity (% FS)
± 0.25 %
Hysteresis
0 % FS
Bande passante (-3 dB)
10000 Hz
Signal otuput
0-5 VDC, 0-10VDC, ± 5 VDC, ± 10 VDC, 4-20 mA
Analog output signal
0-5 VDC
Protection Class
IP67
Tension d'alimentation
5 Vcc
Housing
Steel
  • Complete sensor: 58mm + sensor range
  • Measuring probe: measuring range + 30mm, ID 7.7mm, OD 9.45mm
Option connecteurs et cable
Connector - Hirschmann GD series Axial, IP65
Connector - Axial IP67, M12 - 4 pin. Without trim adjustment
Connector - Axial IP67, M12 - 4 pin. With trim adjustment
Connector - Radial, IP67, M12 4 pin
Cable with axial gland, IP67
Cable with axial short gland, IP67
  • Cable extension
  • Connectors

Related products

Conditionneur Afficheur universel

TRA 220

Conditioner Universal display 1 analog channel (Vcc, Tc, Ma, mV ...) - output RS-485
Inductive displacement transducer Cylinder

LIPS P106 - vérin

Inductive displacement transducer Cylinder - 0-800mm - ATEX option
capteur  à câble

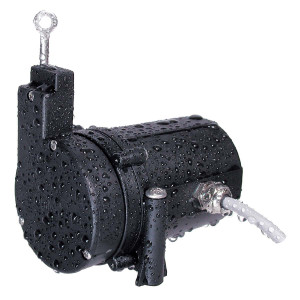

JX-EP
