Ref: M29

Single-channel analog conditioner for IEPE accelerometer

Single-channel IEPE sensor conditioner (accelerometer, microphones, pressure, force)
Output signal: +/- 10 VDC
Connectors: BNC (signal), banana (power)
bandwidth (-3dB): 0.1 Hz ... >100 kHz
Power supply: 5 .. 28 VDC @100 mA
Sensor power supply: 3.5 - 4.5 mA @ 24VDC
Mounting: DIN-rail
Dimensions: 40 x 55 x 45 mm
Operating temperature : -40°C to 55°C
Can be combined with M33 for real-time filtering, speed or displacement calculation
for lab or on-board measurements

Overview

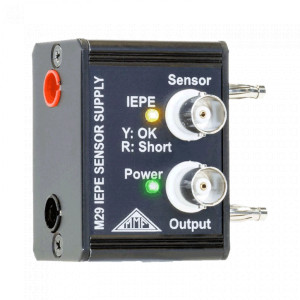

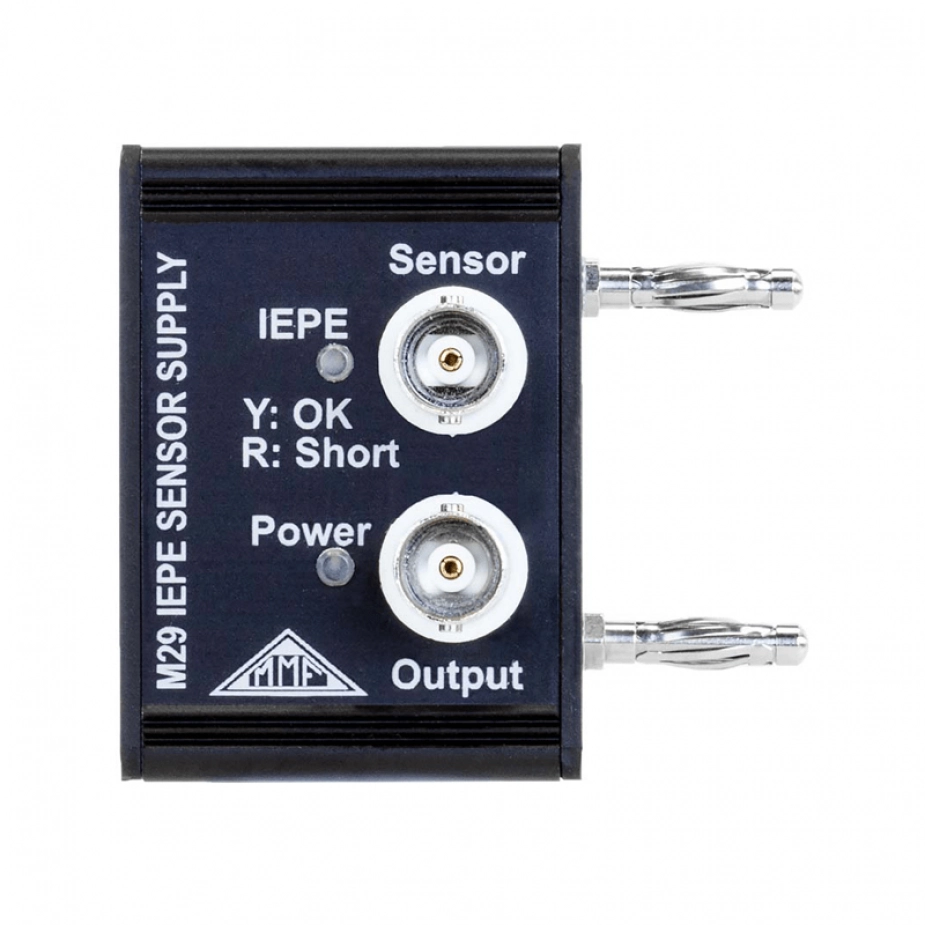

The M29 IEPE power supply module is designed to connect piezoelectric sensors to a display or data acquisition system without IEPE inputs. The M29 module powers the sensor electronics and decouples the DC components from the sensor signal.

The M29 can be combined with the M33 IEPE conditioning module with gain, filtering and integration.
