Programmable strain gage amplifier - IP66

Overview

The GSV-6A is a fully configurable strain gauge amplifier (1 full bridge) designed to convert strain gauge signals (full bridge) into an amplified analog voltage or 4-20 mA current signal.

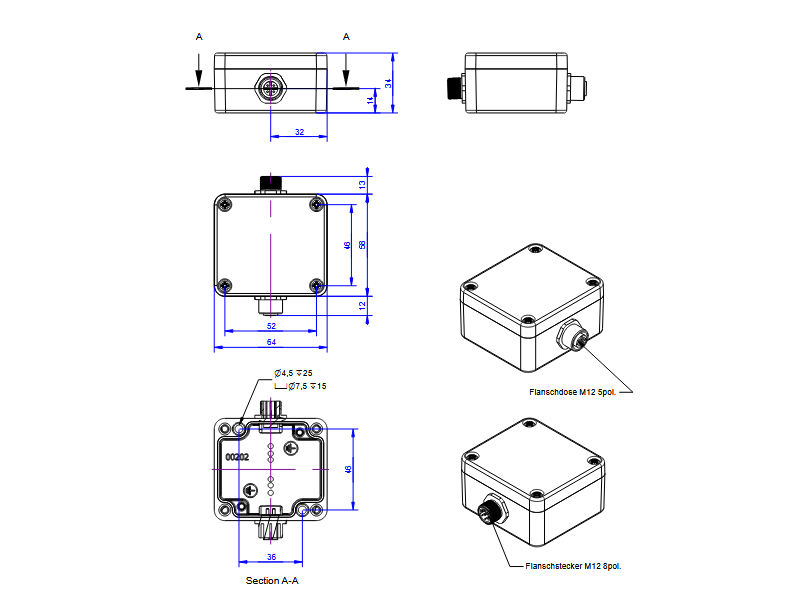

Dimensions

Specifications

• Input sensitivity range: 0.1 to 8 mV/V
• Output signal: -10/+10 VDC or 4-20 mA
• TEDS compatible
• Dimensions: 22 x 14 x 9 mm
• Connectivity: solder pins
• Operating temperature: -10/+70°C
• Supply voltage: 12-24 VDC
• Frequency: 10 Hz to 25 kHz
• Bridge supply: 3 VDC

Module configuration

is performed via 2 tare and scale pins (calibration bench available as an option):

• Voltage or current output
• Offset adjustment
• Sampling frequency
• Low-pass filter activation
• Detection thresholds for alarms

An adjustment module is available as an option

Applications

• Force measurement on test benches, in labs, or on vehicles
• Torque measurement on test benches or in labs
