Ref: AMS-3000

Eddy current displacement sensor for magnetic targets - 0-7 mm - high pressure

  • Eddy current displacement sensor
  • Measures the distance to a magnetic target through non-magnetic barriers
  • Measuring range: 0-1 mm to 0-7 mm
  • Resolution: up to 1µm
  • Operating pressure: 35 Bar (standard), optional up to 2000 Bar
  • Voltage output: 0-10VDC, 0-5VDC, +/- 5VDC or 4-20 mA
  • Bandwidth: 0-12.5 kHz (-3dB)
  • Included: Sensor + cable + electronics
  • Power supply: 12-28Vdc
  • Electronics: DIN rail
  • Waterproofing: sensor : IP67 (optional IP68), IP40 (electronics)
  • Operating temperature: -40°C to 120° (sensor + cable)

Download the product sheet

?

Non-contact position sensor for magnetic targets

AMS-3000 eddy current sensor is used for non-contact measurement of the position of a magnetic part at a maximum distance of 7 mm through non-magnetic barriers (organic or metallic, conductive or non-conductive).

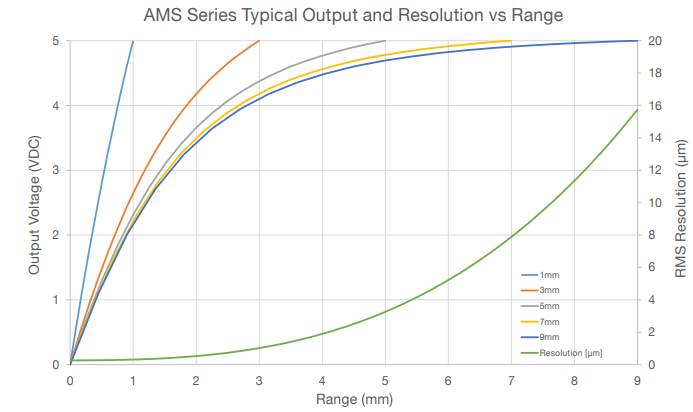

Designed for use in rough temperature (-40 to +120°C) and pressure (35 Bar as standard, up to 2000 Bar as an option) environments, the measurement is done directly on the part / shaft without the addition of a magnet. Resolution ranges from 1 up to 10µm depending on the measurement range, and the bandwidth (12,5kHz) allows the use in high dynamic applications, and/or for vibration.

Installation

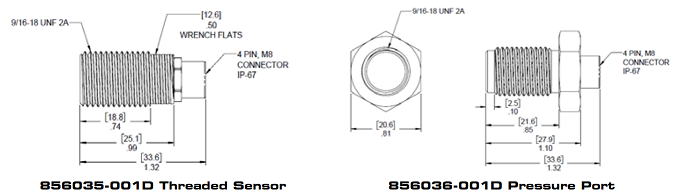

Several interfaces are available for integration: threaded nipple, flanges, AS4320 hydraulic port. Other interfaces are possible as options. The probe, IP67, can be delivered hermetically sealed for submerged applications.

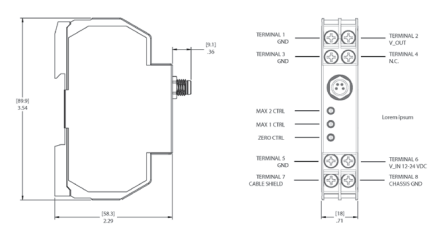

The excitation current for the generation of the magnetic field and the amplification of the measurement signal are realized in a remote DIN-rail conditioner.

Calibration / adjustment

The calibration of the AMS-3000 is performed directly on the application, in real conditions (temperature, pressure, supply voltage, target, etc...), on 2 measurement points. The gain and the offset of the amplifier can be adjusted to optimize the linearity of the response.

Applications

  • Monitoring
  • Measurement of shaft rotation speed
  • Detection of shaft deformation (runout)
  • Monitoring of the state of the teeth of a gear
  • Measurement of impregnation thickness
  • Detection of cracks and defects
  • Measurement of displacement or position under pressure
  • Vibration measurement
  • Machining inspection
  • Verification of assembly
Technologie
Eddy Current
Etendue de mesure linéaire
1 / 3 / 5 / 7 mm
Measuring range
0 à ±50 mm
Remarque
Non-linear
Bande passante (-3 dB)
12500 Hz
Signal otuput
0-5 VDC, 0-10VDC, ± 5 VDC, 4-20 mA
Température de fonctionnement
-200 to 200 °C
Protection Class
IP67
Tension d'alimentation
10 Vcc
Housing
Plastic

Electronic

Probe

  • Special calibration with non-standard measuring range,
  • Special cable; connector on the cable, waterproof feedthrough.
  • Sensor cable length
  • Data acquisition
  • Calibration micrometer
  • Teflon thickness cable
  • 12 or 24Vdc power supply
  • Product training and calibration techniques
