Ref: AFS 110

Liquid level detector with float

Measurement type: Float level detection
Output: Relay (up to 150 VDC / VAC and 1 A)
Available probe rod lengths: 75 mm to 500 mm
Rod diameter: 8 mm
Protection: IP65
Float: Stainless Steel 304
Hydraulic connection: G1/4, G1/2, G1, M14 or M20
Operating temperature: −40 to 125 °C
Electrical connection: Cable or connector output

Livrable habituellement sous 2 à 3 semaines

Introduction

The float-level detector AFS 110 is designed for vertical insertion into a tank or well for full immersion in the fluid. The float, at the end of a rod of up to 500 mm, detects when the level of the tank becomes low. The wiring is via a sealed cable or connector.

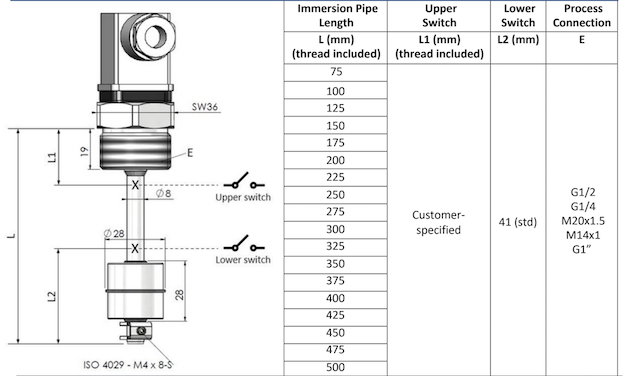

By default, one detection level is offered (rod length – 41 mm). Additional detection levels can be provided (e.g., mid-level fill, full tank).
