Ref: ECC-2D Series

Low cost 2D Digital Compass

  • Heading accuracy: ±1°
  • Hard & soft iron magnetic compensation
  • Wide operating temp range: -40° to +85°C
  • Low-cost electronic compass
  • RS-232, RS-485, and TTL outputs
  • Small footprint (61L x 35W x 21H mm)
  • 5Vdc power supply
  • IP67 seal

Download the product sheet

?

Overview

The ECC-2D Series is a low-cost 2D digital compass in a small package with low power consumption and high reliability designed for commercial and industrial users.

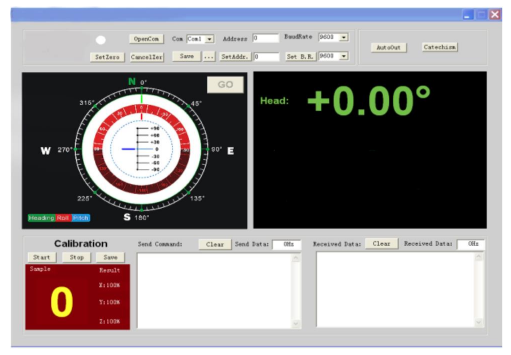

L'interfac: RS-232/485. A utility is provided for the configuration and visualisation.

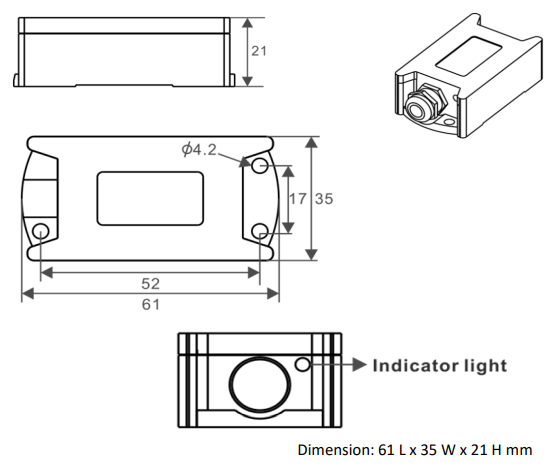

Dimensions

Applications

  • Platform stabilization
  • Satellite Antenna Control
  • ROV/UUV Unmanned Underwater vehicles
  • Marine navigation surveying & mapping
  • Weather buoys
Technologie
Geotechnical
Type de produit
Electronic Compass
Number of Axis
2 Axis
Analog output signal
RS-485
Tension d'alimentation
24 Vcc
Température de fonctionnement
-40 to 105 °C
Housing
Plastic

  • Measuring ranges
  • Cable

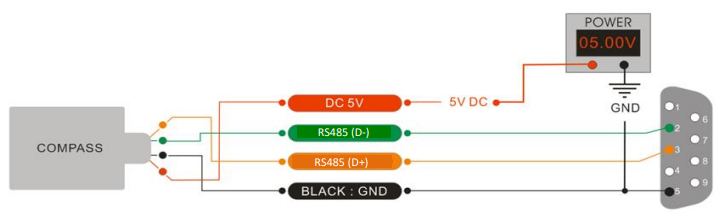

  • Connectique
  • Logger
