FissurTrack – Automated crack displacement and opening sensor

Overview

The FissurTrack is a connected solution for continuous monitoring of cracks, joints and relative displacements on buildings, civil engineering structures and industrial facilities.

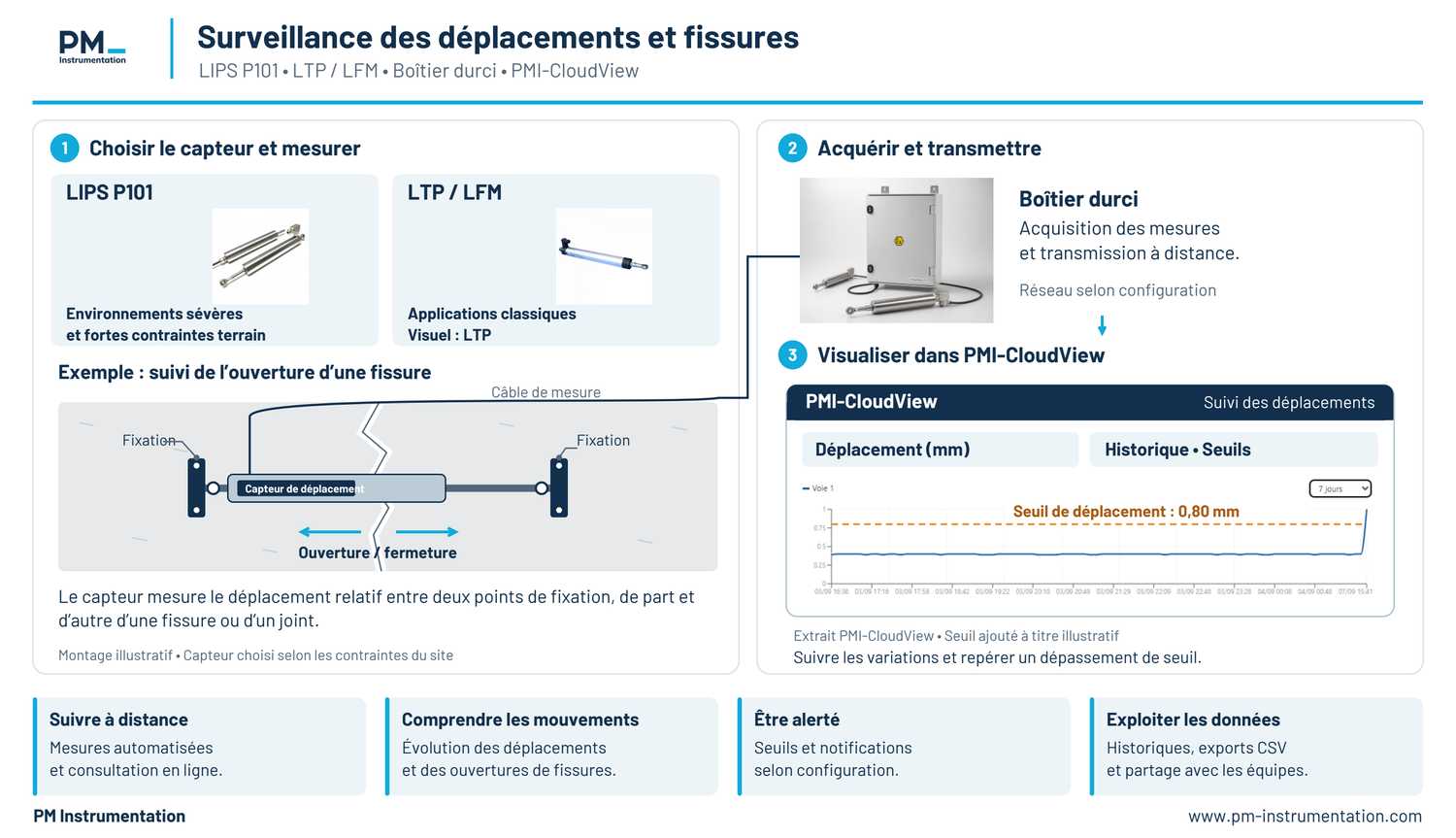

A displacement sensor is installed on both sides of the area to be monitored in order to automatically measure its opening, closing or evolution over time.

Measurements are recorded and then transmitted to PMI-CloudVIEW to view historical curves, track displacement evolution and configure alert thresholds.

The system can operate autonomously on battery or be integrated into a permanent monitoring architecture.

Available versions

FissurTrack Standard

For monitoring cracks, joints and displacements on buildings, metal structures and civil engineering works.

FissurTrack ATEX

Configuration adapted to potentially explosive atmospheres, particularly for industrial sites, Oil & Gas, storage areas or installations with combustible dust.

FissurTrack High Temperature

For monitoring displacements near furnaces, hot pipes, chimneys or equipment subject to high temperatures.

FissurTrack Submersible

For hydraulic structures, dams, canals, bridge piers, port structures, reservoirs and offshore installations.

Applications

The FissurTrack is particularly suitable for monitoring:

• building and structure cracks
• expansion joints
• bridges, tunnels and retaining walls
• slabs and metal structures
• monitoring before, during and after works
• hydraulic structures and submerged structures
• industrial, ATEX or high-temperature installations

Options

• measuring range adapted to the expected displacement
• customized cable length and protection
• additional temperature measurement
• configurable measurement and transmission frequency
• local data storage
• vigilance and alert thresholds
• battery, mains or solar power supply
• 4G, Ethernet or customer network transmission
• data integration via API
• ATEX, high-temperature or submersible version

Accessories

• eyelets, ball joints and mounting plates
• mechanical sensor protections
• cables and extensions
• sealed connectors
• acquisition enclosure or box
• communication gateway
• remote antenna
• battery or external power supply
• solar panel
