Ref: 3400 Series - ATEX

ATEX Precision Force Sensor - ± 450 N to ± 450 kN - IP68

Measurement range: from ±450 N to ±450 kN
Non-linearity: ± 0.05 % full scale
Repeatability: ± 0.02 % full scale
Construction: Stainless steel, IP68 sealed
Amplified output 4-20 mA
Adjustable tare and gain
Sealed connector
Temperature sensitivity < 0.0015% / °C
Certification: ATEX II 2 G Ex ib IIC T4
Tension/compression calibration certificate included

Typically deliverable within 4 to 12 weeks

Overview

The 3400 series is a range of precision force sensors specifically designed for use in ATEX environments. The 4-20 mA output relies on an integrated signal conditioner certified for use in ATEX zones.

Specifications

Specifications	3410	3412	3416	3420	3430	3432
Measurement range	±3.3 kN, ±4.4 kN, ±22 kN, ±44 kN	±89 kN, ±133 kN, ±177 kN, ±222 kN	±89 kN, ±133 kN	±33 kN, ±177 kN, ±222 kN	±222 kN, ±267 kN, ±333 kN	±450 kN
Non-linearity	±0.05%			±0.05%
Hysteresis	±0.05%			±0.05%
Repeatability	±0.02
Side load sensitivity – %	0.25%
Eccentric load sensitivity – %	1%
Output signal	4-20 mA
Supply	9-28 VDC

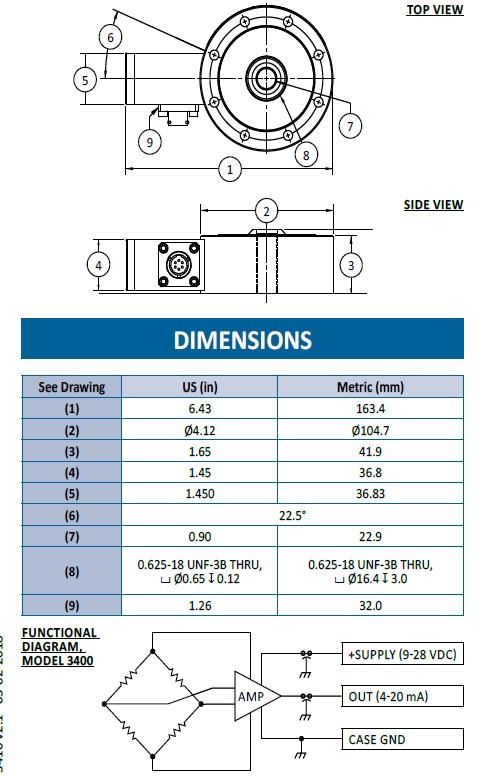

Dimensions
Safe overload	150%
Operating temperature	-50 to +93
Temperature compensation	-18 to +65
Sealing	IP68
Connectivity	Connector PTW1H-10-6P
