Ref: Inclinomètre de forage - Model 906

2-Axis Inclinometer for Boreholes and Ground Monitoring – ±12° to ±50° – Low Cost

  • 2-axis IPI (In Place Inclinometers) for boreholes monitoring
  • Measurement ranges: ±12°, ±30°, ±50°
  • Resolution: < 0.005° / < 0.01° / < 0.02°
  • Housing: ABS plastic tube
  • Electrolytic technology
  • Analog low-pass filter
  • Output signal: ±2.5 VDC or 0–5 VDC
  • Temperature output
  • Frequency response : 0.15 s
  • Dimensions: Ø39 x 231 mm
  • Supply voltage: 8–24 VDC
  • Operating temperature: -25 to +70°C

Download the product sheet

?
Standard lead time : 6-12 weeks

Overview

The A906 model is a low-cost, high-precision biaxial electrolytic inclinometer designed for ground monitoring, landslides, retaining walls, embankments, subsidence, and more. Three measurement ranges are available: ±12° / ±25° / ±50°. The output signal is analog (±2.5 VDC or 0–5 VDC). Pressure resistance up to 5 bar.

Specifications

Measurement range ±12° ±25° ±50°
Resolution < 0.005° < 0.01° < 0.02°
Repeatability 0.01° 0.02° 0.02°
Sensitivity 250 mV/° 100 mV/° 40 mV/°
Non-linearity 0.8% 1% 7%
Response time 0.15 sec 0.15 sec 0.15 sec
Power supply 7 mA @ 8–24 VDC 7 mA @ 8–24 VDC 7 mA @ 8–24 VDC
Environmental -25 to +70 °C – sealed to 5 bar -25 to +70 °C – sealed to 5 bar -25 to +70 °C – sealed to 5 bar
Material ABS plastic ABS plastic ABS plastic
Connector 3 m cable, 6 wires 3 m cable, 6 wires 3 m cable, 6 wires

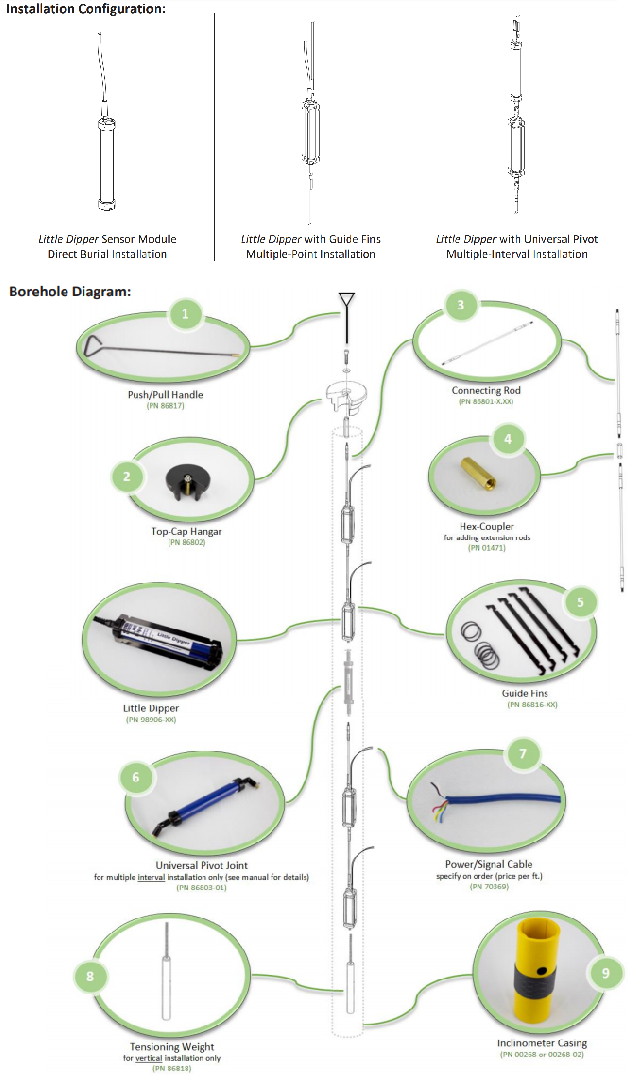

Installation

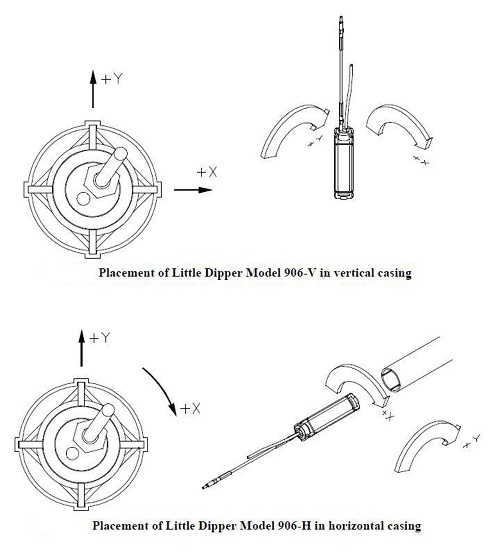

The A906 borehole inclinometer is designed to be integrated into a housing, molded or embedded (pressure resistance: 5 bar).
It can be installed horizontally or vertically.

Installation

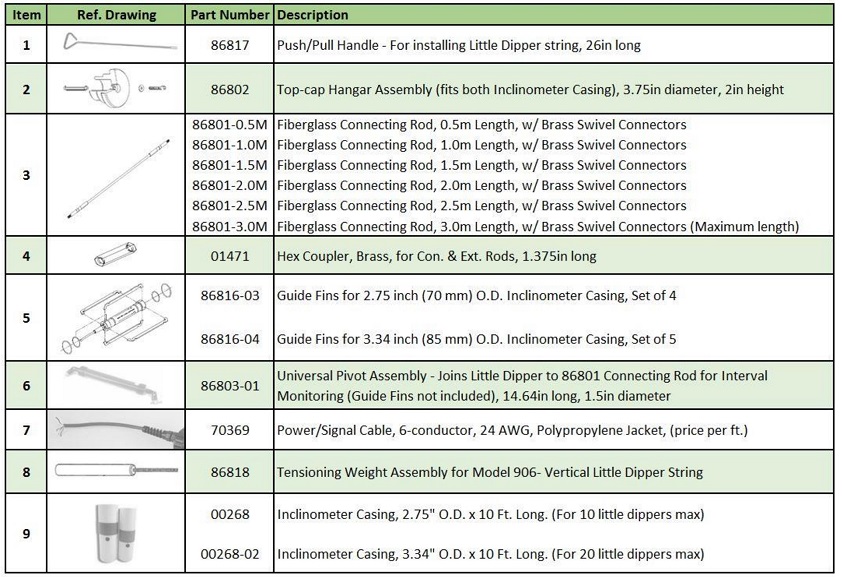

Multiple 906 inclinometers can be connected together to create a high-precision instrumentation system for boreholes extending several tens of meters deep. All required accessories are available on request.

Configuration

The supply voltage range is 8 to 24 VDC.
Delivered as standard with a 3 m cable, customizable on request.
A remote monitoring solution is also available to complement the instrumentation and allow remote access to the measurements.

Applications

  • Slope monitoring
  • Ground subsidence
  • Geotechnical monitoring
  • Boreholes
  • Embankments
  • Angle measurement and control
Technologie
Geotechnical
Number of Axis
1 Axis
Etendue de mesure
25 / 50 / 12 °
Résolution
0.001° - 0.01°
Bande passante (-3 dB)
5 Hz
Application
geotechnical
Nonlinearity (% FS)
± 2 %
Sortie analogique
analog (Voltage)
Analog output signal
0-5 VDC
Tension d'alimentation
8-24 VDC
Température de fonctionnement
-25 to 70 °C
Protection Class
IP65
Housing
Plastic

Dimensions: 39 (diam) x 231 mm

  • Cable length

  • Cable
  • Connectors
  • Display
  • Datalogger
  • Monitoring system
