Rugged precision capacitive accelerometer | IP68 | ±2g to ± 400g
- low noise IP68 waterproof capacitive accelerometer
- Measuring range: from ± 2g to ± 400g
- Accuracy: < 0.5% of full scale
- Output: ± 2.7VDC (MF version) and ± 4VDC (LN version)
- Bandwidth: 0 Hz to 4.2 kHz (LN) and 0 to 7kHz (MF)
- Noise spectral density: from 7 to 400 µg/√Hz (LN version)
- IP68 Stainless steel housing
- Connectivity: cable
- Power supply: 6 to 40 VDC
- Temperature: from - 40 to + 100 °C (-55 to +125°C optional)
- Shock resistance: ± 5000g
- ISO 17025 calibration optional
Download the product datasheet
Description
The OS x115LN and OS x125MF series capacitive accelerometers have been specially developed for applications in harsh conditions, such as rail, wind turbines or marine. With their measuring ranges, wide bandwidth, low noise and rugged (shock limit: 5000 g) and IP68 waterproof design, these accelerometers can be used for vibration characterization, onboard diagnostics and structural monitoring.
Available models
| Model | OS-115LN | OS-125MF | OS-215LN | OS-225MF | OS-315LN | OS-325MF |
|---|---|---|---|---|---|---|
| Number of axes | 1 | 1 | 2 | 2 | 3 | 3 |
| [LN (low noise) or MF (extended bandwidth) version | LN | MF | LN | MF | LN | MF |
Specifications
LN version
| Measuring range [±g] | ±2g | ±5g | ±10g | ±25g | ±50g | ±100g | ±200g | ±400g |
|---|---|---|---|---|---|---|---|---|
| Number of axes | 1, 2 or 3 | 1, 2 or 3 | 1, 2 or 3 | 1, 2 or 3 | 1, 2 or 3 | 1, 2 or 3 | 1, 2 or 3 | 1, 2 or 3 |
| Sensitivity [mV/g] | 2000 | 800 | 400 | 160 | 80 | 40 | 20 | 10 |
| Output signal [VDC] | ± 4 VDC | ± 4 VDC | ± 4 VDC | ± 4 VDC | ± 4 VDC | ± 4 VDC | ± 4 VDC | ± 4 VDC |
| Non-linearity [% of full scale] | < 0.15 (typ), < 0.5 (max) | < 0.15 (typ), < 0.5 (max) | < 0.15 (typ), < 0.5 (max) | < 0.15 (typ), < 0.5 (max) | < 0.15 (typ), < 0.5 (max) | < 0.15 (typ), < 0.5 (max) | < 0.15 (typ), < 0.5 (max) | < 0.15 (typ), < 0.5 (max) |
| Bandwidth: ±3 dB [Hz] | 0-525 | 0-800 | 0-1100 | 0-1750 | 0-2100 | 0-3000 | 0-3600 | 0-4200 |
| Supply voltage [VDC] | 6-40 | 6-40 | 6-40 | 6-40 | 6-40 | 6-40 | 6-40 | 6-40 |
| Operating temperature | -40 to 100 °C* | -40 to 100 °C* | -40 to 100 °C* | -40 to 100 °C* | -40 to 100 °C* | -40 to 100 °C* | -40 to 100 °C* | -40 to 100 °C* |
| Housing | Stainless steel IP68 | Stainless steel IP68 | Stainless steel IP68 | Stainless steel IP68 | Stainless steel IP68 | Stainless steel IP68 | Stainless steel IP68 | Stainless steel IP68 |
*optional: -55 to 125°C
MF version
| Measuring range [±g] | ±2g | ±5g | ±10g | ±30g | ±50g | ±100g | ±200g |
|---|---|---|---|---|---|---|---|
| Number of axes | 1, 2 or 3 | 1, 2 or 3 | 1, 2 or 3 | 1, 2 or 3 | 1, 2 or 3 | 1, 2 or 3 | 1, 2 or 3 |
| Sensitivity [mV/g] | 1350 | 540 | 270 | 90 | 54 | 26 | 13.5 |
| Output signal [VDC] | ± 2.7 | ± 2.7 | ± 2.7 | ± 2.7 | ± 2.7 | ± 2.7 | ± 2.7 |
| Non-linearity [% of full scale] | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Bandwidth: ±3 dB [Hz] | 0-1150 | 0-1900 | 0-3200 | 0-4000 | 0-4500 | 0-5000 | 0-7000 |
| Supply voltage [VDC] | 5-40 | 5-40 | 5-40 | 5-40 | 5-40 | 5-40 | 5-40 |
| Operating temperature | -40 to 100 °C* | -40 to 100 °C* | -40 to 100 °C* | -40 to 100 °C* | -40 to 100 °C* | -40 to 100 °C* | -40 to 100 °C* |
| Housing | Stainless steel IP68 | Stainless steel IP68 | Stainless steel IP68 | Stainless steel IP68 | Stainless steel IP68 | Stainless steel IP68 | Stainless steel IP68 |
*optional: -55 to 125°C
Installation and use
Output signal and installation
The amplified output signal of the OS-x115LN (±4VDC) and OS-x125MF (±2.7VDC) capacitive accelerometers is differential and independent of the supply voltage (6 to 40 VDC). With a rugged IP68 stainless steel housing weighing 31 to 68 depending on the version, an operating temperature range of -55 to +125°C, and shock resistance up to 5000g, these accelerometers are suitable for the harshest industrial environments. Mounting is done by screwing.

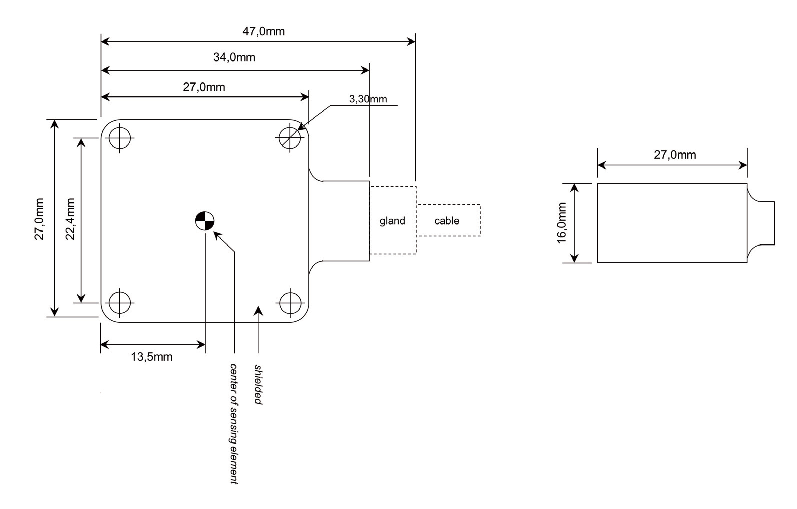

Dimensions
Wiring
The standard cable (30 gram/meter; PUR; AWG 30; Diameter: 4.4mm) is available from 4 to 12 wires. The standard length (6m) can be adjusted as needed (limit of about 30m). A LEMO, Jaeger, BNC, SUBD or other type connector can also be added as an option. Also optional, for the 2 and 3-axis versions, a trident wire arrangement to simplify connection to the acquisition system.
Options
- Cable length
- Connectivity
- ISO 17025 calibration
- Marine version housing resistant to seawater
- TEDS module
- TEDS
- High temperature cable
Applications
- Vibration monitoring in rail applications
- Offshore wind turbine instrumentation
- Structural monitoring
- Offshore platform monitoring
- Vibration analysis of boats
- Number of Axis
- 1 Axis, 2 Axis, 3 Axis
- Technologie
- MEMS capacitive
- Type de produit
- Accelerometer
- Sensitivity [mV/g]
- 80 mV/g
- Measuring range [g]
- 2 / 5 / 10 / 25 / 50 / 100 / 200 / 400 G
- Bandwidth (+/-5%)
- 0 , 100 , 300 , 500 , 650 , 1000 Hz
- Analog output signal
- ± 5 VDC
- Signal otuput
- ± 4 VDC
- Tension d'alimentation
- 10 Vcc
- Connecteur
- optional
- Protection Class
- IP68
- Housing
- Steel
- Poids
- 0.031
- 0-5 g, 5-50g, 50-500g
- Application
- Comfort, Vibration
