3-axis vibration recorder for civil engineering sites and infrastructure monitoring

Standalone triaxial field vibration recorder
Compliant with BS 7385, DIN 4510-3, ISO 2631-2 standards
Power supply: 2 x 18650 batteries, charging 5-18VDC
FFT and PPV calculation
Programmable alerts and alarms
Alarm notifications by SMS / emails (optional)
Results recording on micro-SD card (32 GB)
Temperature measurement included (thermistor)
Acceleration measurement range: +/-2g
Sampling rate: 250 Hz
Frequency spectrum analyzed: 0-100 Hz
Easy to use
Operating temperature: -20 to +60°C
Dimensions: 100 mm x 100 mm x 60 mm excluding antenna

Delivered within 3 to 4 weeks

Overview

SHAKEdot is a standalone vibration recorder designed for continuous vibration monitoring (days, weeks, months, years) and the protection of construction sites, buildings, historical monuments, civil engineering structures and other sensitive infrastructure. SHAKEdot is powered by two 18650 lithium batteries and integrates a direct current charging circuit (5 to 18 VDC). Collected data is saved locally on a micro-SD card with sufficient capacity for more than one million data samples (32 GB). The SHAKEDOT also integrates LTE-M and Nb-IOT connectivity enabling real-time and remote access to collected data, as well as the implementation of alarm rules and automated notifications.

The measurements provided by the embedded 3-axis capacitive accelerometer are sampled at 250 Hz, then continuously processed to calculate a number of indicators, including peak particle velocity (PPV), in accordance with DIN 4150-3 and BS 7385-2 standards, and MTVV (ISO 2631-2). When a threshold is exceeded, the data (timestamp, main harmonic and PPV for each axis, temperature and battery level) is saved on the SD card (with timestamp) and also transmitted to the remote server for archiving and notification of the operator / user.

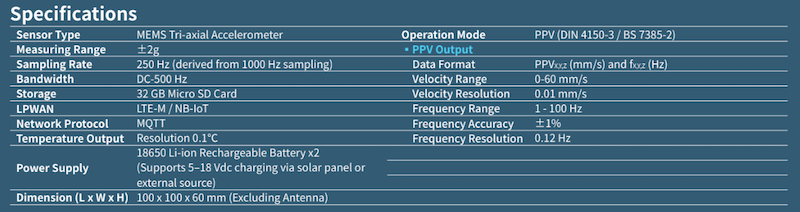

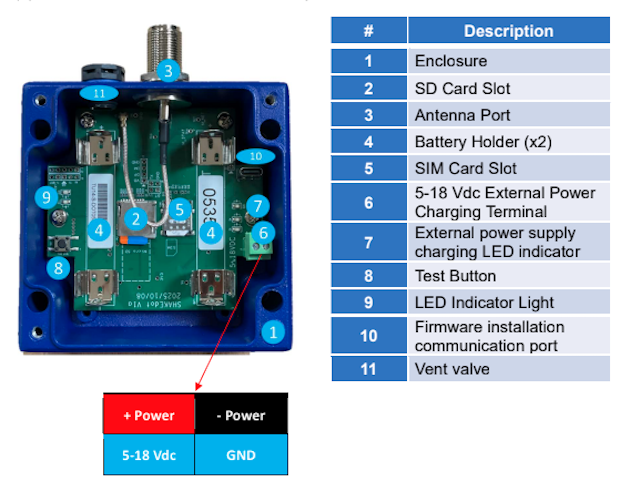

Specifications

The rugged enclosure is compact (100 mm x 100 mm x 60 mm excluding antenna) and can be used indoors or outdoors (IP67, operating temperature: -20 to 60°C).
