Ref: TL6x0D - TL6x8D

Low-cost MEMS gyroscope with analog output - 1/2/3 axes

MEMS gyroscope
Gyro measurement range: ± 50°/s; ± 150°/s; ± 300°/s
Available in single-axis, dual-axis, and triple-axis versions
Output signal: 0-5V voltage for TL-6x0D, 4-20 mA current for TL-6x8D
Power supply: 9-36 VDC
Operating temperature: -40 to +85°C
Drift: 20°/h
Resolution: 0.1°/s
Non-linearity: < 0.1% PE
Temperature drift: <±0.1°/sec/°C
Bandwidth: 2000 Hz

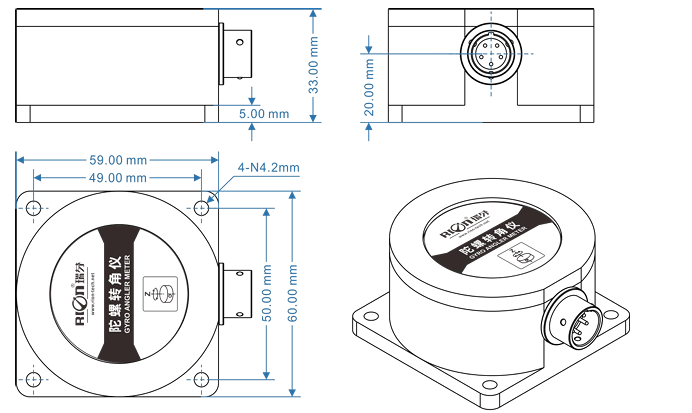

Dimensions: 60 x 59 x 33 mm
Mounting: 4 M4 screws
Weight: 110 grams (without cable)

Delivery time usually 4 weeks

Overview

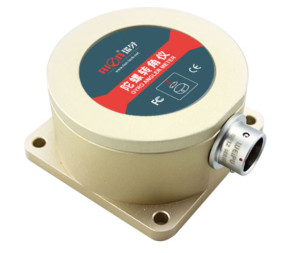

The TL610D gyroscope is a MEMS sensor used to measure the angular velocity of a moving object. The model is available with voltage (0-5V) or current (4-20 mA) output, in single-axis, dual-axis, or triple-axis versions. The drift over time is 20°/h.

Specifications

Measurement range [°/s]	+/- 50	+/- 150	+/- 300
Time drift	20°/h	20°/h	20°/h
Bandwidth	>2000Hz	>2000Hz	>2000Hz
Non-linearity	0,1%	0,1%	0,1%
Resolution	0.1°/s	0.1°/s	0.1°/s
Power supply	9-36VDC	9-36VDC	9-36VDC
Output type	0-5V (TL-6x0D) ou 4-20 mA (TL-6x8D)	0-5V (TL-6x0D) ou 4-20 mA (TL-6x8D)	0-5V (TL-6x0D) ou 4-20 mA (TL-6x8D)
Working temperature	-40 à +85°C	-40 à +85°C	-40 à +85°C
IProtection class	IP67	IP67	IP67

Installation and Use

The TL-610D gyroscope is characterized by its very small size (60 x 59 x 33 mm), high shock resistance (200 g in operation), and industrial-grade design. It has an aluminum casing weighing 110 grams, with an IP67 protection rating. It is mounted using four M4 threaded holes. The supply voltage is 9-36V.
