Miniature triaxial ICP accelerometer ±50g to ±1000g - 9.5 x 9.5 x 9.5 mm
- Triaxial IEPE (Integrated Electronic Piezoelectric) accelerometer
- Measurement ranges: ± 50, ± 100, ± 250, ± 500g or ± 1000g
- Sensitivity: 5, 10, 20, 50 or 100 mV/g
- Bandwidth at ±5%: from 1Hz to 10kHz
- Voltage output ±5V per axis
- Connector: 4-pin 1/4-28 connector
- IP68 waterproof
- Resonance frequency: > 70 kHz
- Dimensions: 9.5 x 9.5 x 9.5 mm (excluding connector) to 12.2x12.2x12.2 mm
- Mounting: M2.5 tapped hole (screw included)
- Weight: 3.4g to 7.5g
- Operating temperature: -50° to +120°C
- Configurable compatible cable here
Download the product datasheet
Overview
The B02Y32 is a hardened miniature triaxial piezoelectric (IEPE) accelerometer (IP68, shock resistance of 5000 g, operating temperature: -50 to 120 °C) designed for vibration characterization of components and structures in automotive, energy and aerospace applications. The measurement range is 500g per axis, with a bandwidth reaching 10 kHz at +/- 5%.
Specifications
| Model | B01Y32 | B02Y32 | B03Y32 | B05Y32 | B06Y32 |
|---|---|---|---|---|---|
| Sensitivity | 5 mV/g | 10 mV/g | 20 mV/g | 50 mV/g | 100 mV/g |
| Measurement range | 1000g | 500g | 250 g | 100 g | 50 g |
| Frequency response (5%) | 1 Hz to 10 kHz | 1 Hz to 10 kHz | 1 Hz to 10 kHz | 1 Hz to 8 kHz | 1 Hz to 8 kHz |
| Frequency response (10%) | 0.5 Hz to 11 kHz | 0.5 Hz to 11 kHz | 0.5 Hz to 11 kHz | 0.5 Hz to 10 kHz | 0.5 Hz to 10 kHz |
| Connector output | 4-pin 1/4-28 | 4-pin 1/4-28 | 4-pin 1/4-28 | 4-pin 1/4-28 | 4-pin 1/4-28 |
| Mass | 3.3 grams | 3.4 grams | 3.5 grams | 5 grams | 7.5 grams |
| Mounting | M2.5 tapped hole | M2.5 tapped hole | M2.5 tapped hole | M2.5 tapped hole | M2.5 tapped hole |
| Operating temperature | -50 to +120°C | -50 to +120°C | -50 to +120°C | -50 to +120°C | -50 to +120°C |
| Resonance frequency | > 70 kHz | > 70 kHz | > 52 kHz | > 45 kHz | > 38 kHz |
Ultra-light housing
The B02Y32 comes in a hardened titanium housing resistant to corrosion and chemicals, operating over an extended temperature range from -50 °C to + 120 °C. The construction is hermetically welded (IP68) and can withstand shocks of up to 5000 g. The total weight is 3.4g.
The B02Y32 is powered by a 2 to 20 mA DC constant current (voltage: 20-30 VDC), connectivity is provided via a 4-pin connector. Mounting on the application is done by screwing (a central M2.5 tapped hole).

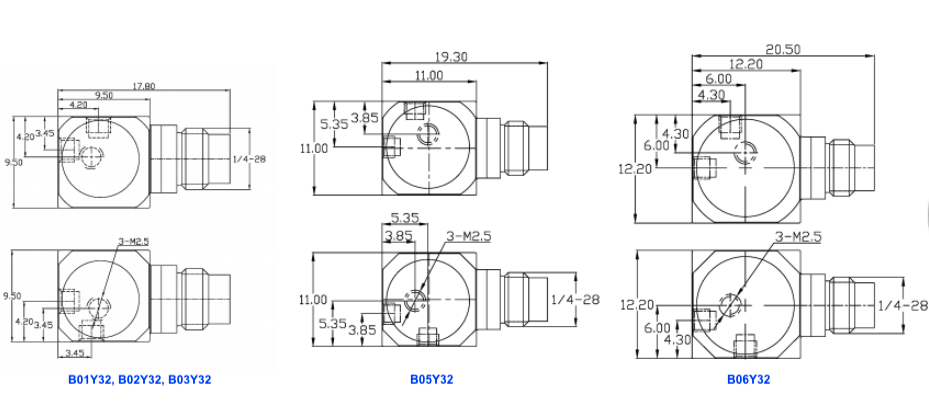

Dimensions
Applications
- Modal analysis
- Automotive testing
- Laboratory tests
- Vibration study / shock study
- Frequency analysis
- Design studies
- Number of Axis
- 3 Axis
- Sensitivity [mV/g]
- 5 mv/g, 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g
- Measuring range [g]
- 500 G
- Bandwidth (+/-5%)
- 8000 Hz
- Nonlinearity (% FS)
- ± 1 %
- Operating temperature range
- -50 to +120°C
- Cable
- integral cable 1m
- Protection Class
- IP67
- Housing
- Titanium
- Poids
- 0.0017
- Application
- Miniature
Datasheet-B0xY32_PMi_FR.pdf
- Cable 3, 6 or 9m, BNC outputs
- Connector
- Connector position
- Measurement range
- ISO-17025 calibration certificate (as standard, the sensor is supplied with a standard factory certificate)
