Ref: B0xYG1

IEPE Triaxial Accelerometer - Isolated Housing - ±50 to ±500g

Triaxial IEPE (Integrated Electronic Piezoelectric) accelerometer
Measurement ranges: ±50g, ±250g, or ±500g
Sensitivity: 10mV/g, 20mV/g, or 100mV/g
Bandwidth at ±10%: 0.5 Hz to 8 kHz
Connectivity: 4-pin 1/4-28 connector
IP68 waterproof
Resonance frequency: >30 kHz to >50 kHz depending on version

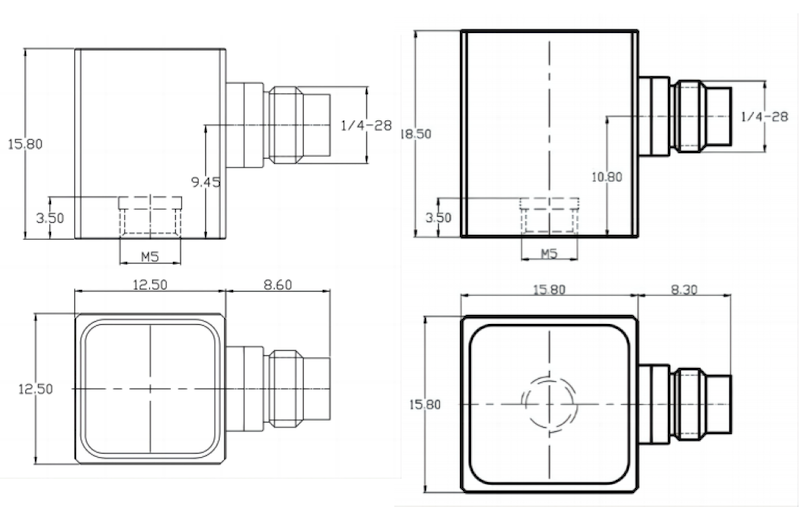

Dimensions: 12.5×12.5×15.8 mm (excluding connector)
Installation: M5 threading or adhesive mounting
Weight: 9.5 to 18 grams depending on version
Operating temperature: -40°C to +120°C
Configurable compatible cable

Delivery usually within 3 weeks

Overview

The B0xYG1 is a ruggedized (IP68, shock resistance from 1000 to 5000 g depending on the version, operating temperature: -40 to 120 °C) miniature piezoelectric (IEPE) triaxial accelerometer designed for vibration characterization of components or structures. Three measurement ranges are available: ± 50g, ± 250g, and ± 500g per axis, with a bandwidth reaching 8 kHz at ± 5%.

Specifications

Model	B02YG1	B03YG1	B06YG1
Sensitivity	10 mV/g	20 mV/g	100 mV/g
Measurement range	500g	250 g	50 g
Frequency response (5%)	1 Hz to 8 kHz	1 Hz to 8 kHz	1 Hz to 8 kHz
Frequency response (10%)	0.5 Hz to 10 kHz	0.5 Hz to 10 kHz	0.5 Hz to 9 kHz
Connector output	4-pin 1/4-28	4-pin 1/4-28	4-pin 1/4-28
Mass	9.5 grams	9.5 grams	18 grams
Mounting	M5 threaded hole	M5 threaded hole	M5 threaded hole
Operating temperature	-40 to +120°C	-40 to +120°C	-40 to +120°C
Resonance frequency	> 50 kHz	> 50 kHz	> 35 kHz

Ruggedized isolated housing for harsh EMC environments

The B0xYG1 comes in a corrosion- and chemical-resistant titanium housing, operating over an extended temperature range from -40 °C to +120 °C. The hermetically welded construction (IP68) can withstand shocks up to 5000 g. The total weight ranges from 9.5g to 18g depending on the version (excluding connector).

The B0xYG1 is powered by a 2 to 20 mA DC current (voltage: 20-30 VDC), with connectivity provided via a 4-pin connector. Mounting on the application is achieved by screwing (central M2.5 threading) or bonding. A mounting plate is included to electrically isolate the accelerometer from its support.
