Configurable Load Pin - 0-100 kg to 0-1500 tonnes
- Instrumented load pin for load measurement
- Standard measurement ranges: 0.5, 1, 2.5, 3.5, 6.5, 15, 25, 50, 100, 250, 500, 750, 1000, 1500 tonnes
- Non-linearity: 0.2% to 1.5% of full scale
- Output signal: 1.5 mV/V (or amplified as an option)
- Dimensions: specific, according to application constraints
- Overload protection: 150%
- Breaking limit: > 300% of nominal capacity
- Construction: stainless steel IP67
- Operating temperature: -20 to 70°C
- Connectivity: 5 m 4-wire cable or connector
- Options: Integrated amplifier, ATEX
Download the product datasheet
Overview
The LPB instrumented pin is installed in place of the original pin and is designed for real-time load measurement/monitoring in a wide range of applications such as cranes, winches, hoists, overhead cranes, shackle instrumentation, or bearing assemblies.
The standard range is available in 14 nominal capacities starting from 500 kg up to 1500 tonnes, with a measurement accuracy of approximately 1% of full scale. The output signal is 1.5 mV/V of excitation (5 or 10V). Overload protection is 150% of the measurement range, with a breaking limit exceeding 300% of the nominal range.

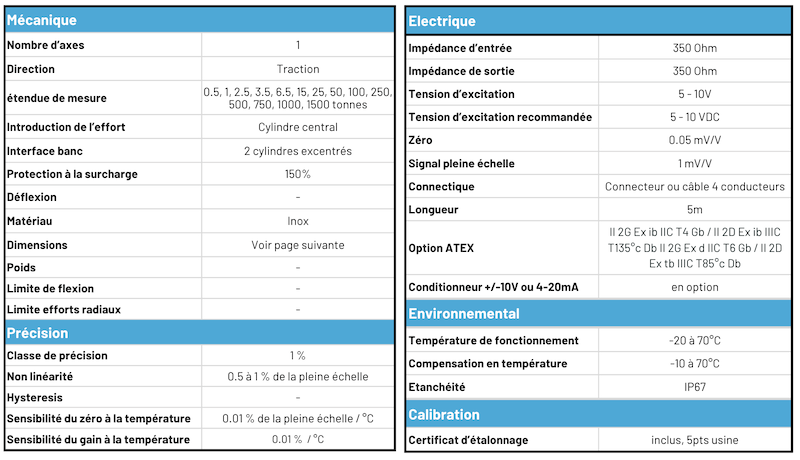

Specifications
Installation
The LPB pin is mounted in place of the standard pin in the original component and measures tensile forces applied to the central cylinder via shear. The pin is typically supplied with an anti-rotation plate and a 5 m cable. The LPB load pin is suitable for outdoor use, featuring a hardened stainless steel IP67 body and an operating temperature range of -20 to +70°C. The output signal (1.5 mV/V) can be optionally amplified (output 4-20mA, 0-5V, 0-10V, or RS-485/Modbus RTU).

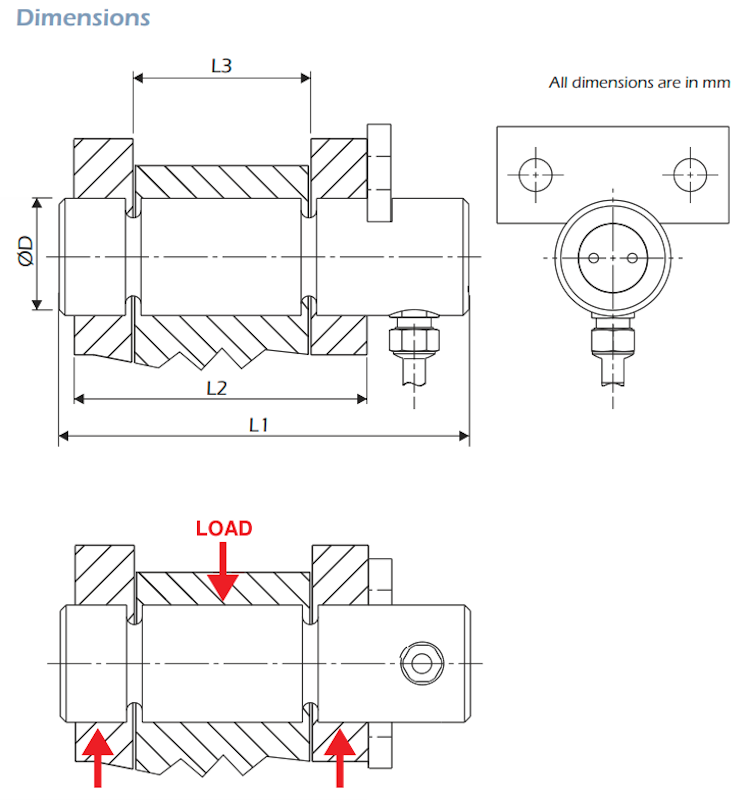

Dimensions
Configuration Options
-
Measurement ranges
-
Connectivity
-
Output signal
-
Conditioning, acquisition: Display, Conditioner, or Acquisition modules
Applications
- Machine tool instrumentation
- Marine
- Lifting
- Weighing
- Measuring Range
- 3.5t , 6.5t , 15t , 25t , 50t , 100t , 200t , 250t , 500t , 750t , 1000t , 1500t , 0.1
- Precision (max error)
- 1 %
- Nonlinearity (% FS)
- ± 0.5 %
- Hysteresis
- 0.25 % FS
- Nonrepeatability
- 0.1 % FS
- Temperature Compensated Range
- -20 to 70 °C
- Operating temperature range
- -10 to 70 °C
- Zero Balance
- 0.01 %PE/°C
- Sensibilité du gain
- 0.01 %/°C
- Analog output signal
- 0-10 VDC, 0-5 VDC, 4-20 mA, non-amplifié, RS-485
- Output Signal
- 1.5 mV/V
- Résistance du pont
- 350 Ω
- Tension d'alimentation
- 5 Vcc
- Surcharge
- 150 %PE
- Housing
- Stainless Steel
- Protection Class
- IP67
- Poids
- 0.319
- Measuring Range (Force)
- 100 - 250 kN, > 250 kN, > 1 MN
- Application
- OEM
LP-Load-Pin-2.pdf
Load-Pin-Instruction-Manual.pdf

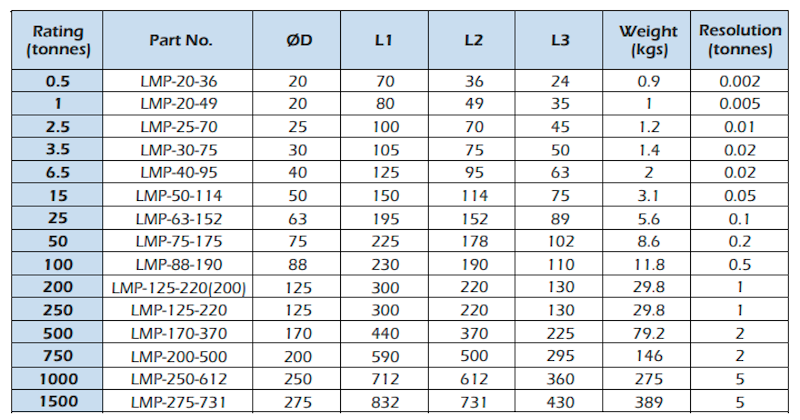

Dimensions
- Calibration in tension and/or compression
- Cable length
- Specific connector
- Extended temperature compensation
- ISO 17025 calibration
- Amplification (5VDC, 10VDC, 4-20mA)
- Submersible version
- TEDS
-
Single-channel conditioner: GSV-6K (inline), GSV-1H (DIN rail), GSV-1M (IP67), or GSV-6L (miniature)
-
Single-channel display: TRA-240 (basic) or GSV-2MSDI (with standalone logger function)
-
Desktop conditioner/display GSV-2TSDI
-
4-channel conditioner GSV-1A4
-
1 channel: GSV-2AS (RS-232/485 or CANopen) or GSV-3USB (1 or 2 channels USB)
-
4 channels GSV-4USB (USB)
-
8 channels GSV-8DS (LAN/WiFi/USB/EtherCAT/CANRS-232)
