Compression Force Sensor 0-250kg to 0-10 tonnes - Accuracy 0.02%

Overview - Installation

The KR80 strain gauge compression force sensor enables load measurement up to 10 tonnes with 0.02% accuracy in a compact size (Ø 80mm to 95mm). Available in 7 measurement ranges (0-0.25t, 0-0.5t, 0-1t, 0-2t, 0-3.5t, 0-5t, 0-10t), it can be delivered calibrated up to C6 according to the OIML R60 standard.

Force is applied via a slightly spherical load button (R100mm) with a diameter of 19 to 28mm, to be inserted into the central hole.

The KR80 sensor is made of IP66-rated stainless steel, operates within a temperature range of -30 to +70°C, and is temperature-compensated between -10 and +40°C. A 3m, 4-wire cable is provided for sensor power supply (5VDC) and output signal (unamplified).

Installation

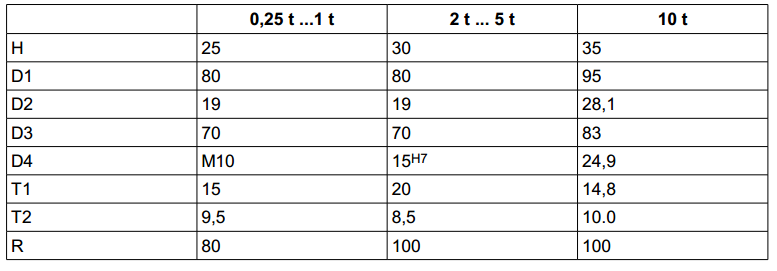

Dimensions

Mechanical integration

Several accessories are available to facilitate integration into the application.

	150 x 100 x 80mm, 4x 14mm, steel	Adjustable-height foot

Signal conditioning and data acquisition

Type	Single-channel IP66 conditioner	In-line conditioner	DIN-rail conditioner	Junction box	Acquisition module	Bench conditioner with display	Simple display
Model	GSV-1A	GSV-6K	GSV-1H or PMI-520AJ	GSV-15KL4 (Summing box)	GSV-3USB (1 channel) or GSV-1A4 (4 channels)	GSV-2TSDI	MICRA-M
Output signal	±10V or 4-20mA or 12±8mA	0-10V, -10/+10 VDC, 0-5V, ±5V, 0-20 mA, or 4-20 mA	±10V or 4-20 mA	±10V or 4-20mA or 12±8mA	USB (PC)	-5/+5 VDC, 0-10VDC or 4-20 mA + USB / RS-232	Voltage / relay / serial or Ethernet
Format

Applications

• Contact force measurement
• Machine tool instrumentation
• Assembly force measurement
• Handle instrumentation
• Process monitoring
• Crushing force measurement
• Conveyor weighing

Dimensions

Connectivity

3 m Unitronic FD CP Plus / 4x0.14

• Measurement range
• Connectivity and cabling

• Single-channel conditioner: GSV-6K (in-line), GSV-1H (DIN rail), GSV-1M (IP67) or GSV-6L (miniature)

• Single-channel display: TRA-240 (basic) or GSV-2MSDI (with standalone logger function)

• Bench conditioner/display GSV-2TSDI

• 4-channel conditioner GSV-1A4

• 1 channel: GSV-2AS (RS-232/485 or CANopen) or GSV-3USB (1 or 2 channels USB)

• 4 channels GSV-4USB (USB)

• 6 channels GSV-6BT (Bluetooth) or GSV-6LTE (LTE Datalogger)

• 8 channels GSV-8DS (LAN/WiFi/USB/EtherCAT/CANRS-232)
