Ref: LWHP14 - 50N à 100 KN - 5 à 27mm

Precision Load Washer Load Cell - 0-50N to 0-100 kN

  • Capacities from 0.05 kN to 100 kN
  • Ideal for applications requiring a thru-hole
  • Accuracy class : 0,5%
  • Signal output : 1mV/V
  • Stainless Steel Construction
  • Protection Class: IP 60
  • Operating Temperature : -10 to 70°C

Download the product sheet

?

Presentation

Model LWHP14 Load Washer is designed for use in force applications. Typical uses include monitoring the force required to press two parts together. This product is constructed from stainless steel and is available in capacities ranging from 0.05 kN to 100kN.

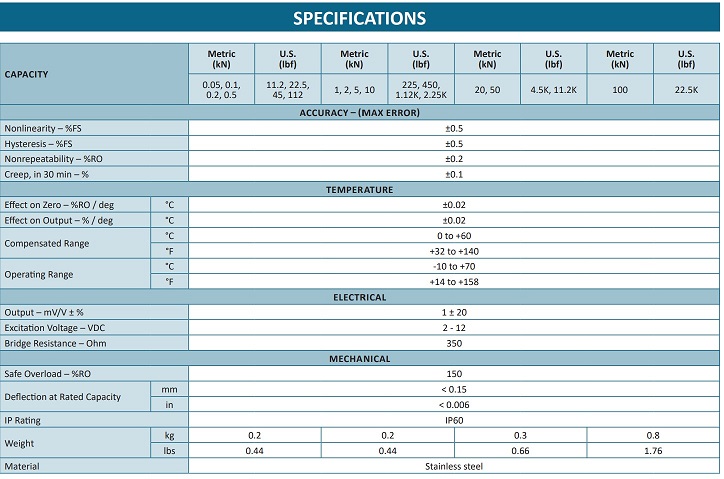

Specifications

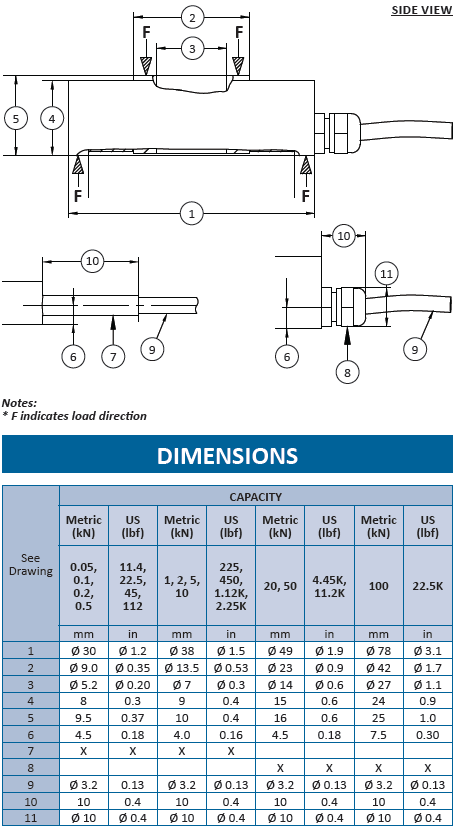

Dimensions

Installation

Voltage supply: 5 or 10VDC. Non-amplified output signal. Connection: Cable output, 3m, flying leads

The following amplifiers are recommended to be used with the CFCL1:

Applications

  • tightening force measurement
  • Clamping force measurement
  • prestraint force measurement
  • tightening torque measurement

Options and accessories

  • extended compensation temperature area
  • cable length
  • calibration
  • TEDS module
  • Amplifier, display
  • Acquisition module
Type
Load washer
Precision (max error)
0.25 %
Nonlinearity (% FS)
± 0.5 %
Hysteresis
0.5 % FS
Nonrepeatability
0.2 % FS
Zero Balance
0.02 %PE/°C
Résistance du pont
350 Ω
Tension d'alimentation
10 Vcc
Measurement direction
Compression
Housing
Steel
Protection Class
IP61
Measuring Range (Force)
⩽ 1 kN, 1 - 100 kN
Application
OEM, Miniature

Options and accessories

  • extended compensation temperature area
  • cable length
  • calibration
  • TEDS module
  • Amplifier, display
  • Acquisition module

Amplifier / Display

Acquisition module

  • 1 channel: GSV-2AS (RS-232/485 or CANopen) or GSV-3USB (1 or 2 USB channels)
  • 4 channels GSV-4USB (USB)
  • 6 channels GSV-6BT (Bluetooth) or GSV-6LTE (LTE Datalogger)
  • 8 channels GSV-8DS (LAN / WiFi / USB / EtherCAT / CANRS-232)
