Ref: LCHA

Miniature Tension-Compression Force Sensor - ±10N to ±100N - 0.1% Accuracy

Strain gauge tension/compression force sensor
Measurement range: ±10N, ±20N, ±50N, ±100N
Accuracy class: 0.1%
Non-linearity: 0.05% FS
Dimensions: 40 x 25 x 10 mm
Installation: 1 x M3 (load), 4 x M3 (fixed part)
Operating temperature: -20 to +80°C
Bridge supply: 1 to 10V
Output: 2 mV/V
Construction: Aluminium, IP40
5-point calibration certificate included
Output: cable or connector

Overview

The LHCA force sensor enables tension and compression force measurement with high precision (0.1% of full scale) and minimal space requirement (only 10 mm in height). Force is applied via an M3 threaded hole. The sensor is fixed to the test bench or frame using 4 M3 threaded holes.

Available in 4 capacity versions from 10N to 100N, the LHCA features robust construction (aluminium, 150% overload protection) and an operating temperature range from -20 to 80°C.

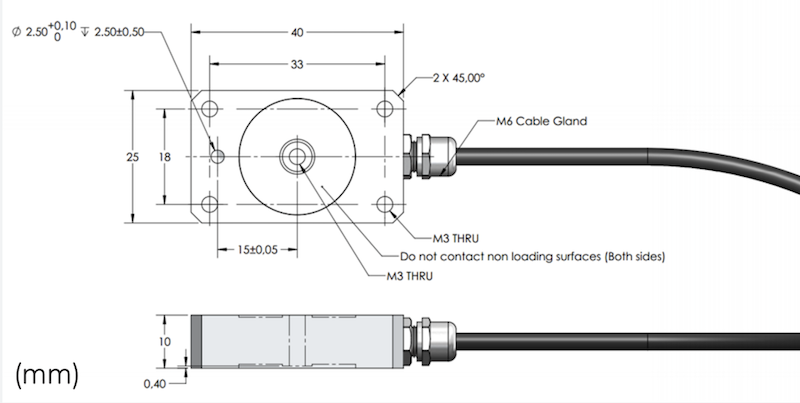

Dimensions

Usage

The LHCA force sensor is powered by 2.5 to 10 Vdc. A complete and configured measurement chain can be obtained by adding a display, conditioner, or acquisition module:

Display	Display	Analog Conditioner	Analog Conditioner	Analog Conditioner	Acquisition Module	Acquisition Module
GSV-2TSDI	MICRA-M	PMI-520AJ	GSV-1A	GSV-6K	GSV-3USB	GSV-2AS

24-bit display with acquisition function	Simple display	Precision analog conditioner with voltage or current output	IP66 analog conditioner with ±10V or 4-20mA or 12±8mA output	In-line conditioner with ±10V or 4-20mA or 12±8mA output	USB acquisition module	RS-232/485 or CANopen acquisition module

Applications

Tension measurement
Material testing
Machine tool instrumentation
Robotics
Tensile machine instrumentation
Weighing / dosing

Options and Accessories

Cable length
TEDS plug
Conditioning module
Display
Acquisition system

Type: Column
Measuring Range: ±10N , ±20N , ±50N , ±100N
Precision (max error): ≤ 0.1 %
Nonlinearity (% FS): ± 0.05 %
Hysteresis: 0.05 % FS
Nonrepeatability: 0.03 % FS
Temperature Compensated Range: -15 to 71 °C
Operating temperature range: -20 to 80 °C
Zero Balance: 0.018 %PE/°C
Sensibilité du gain: 0.018 %/°C
Analog output signal: non-amplifié
Output Signal: 2 mV/V
Résistance du pont: 350 Ω
Tension d'alimentation: 5 Vcc
Measurement direction: Traction, Compression, Traction & Compress.
Déflection: 0.1 mm
Surcharge: 150 %PE
Housing: Aluminium
Protection Class: IP40
Measuring Range (Force): ⩽ 1 kN
Application: High Accuracy, OEM, low cost

Datasheet-LHCA_PMi_FR.pdf

Dimensions

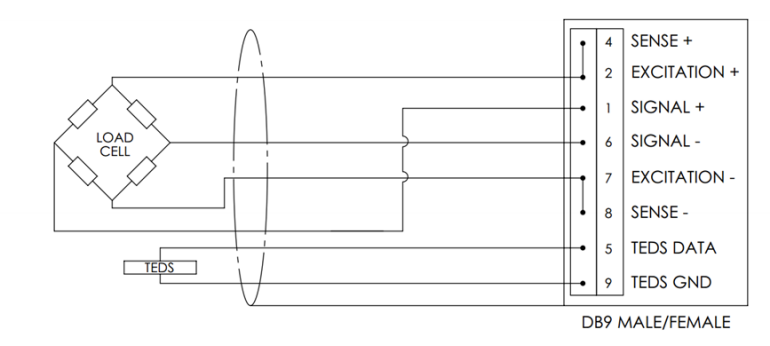

Connectivity

Output via connector or cable

Shielding - metal braid

Cable length
Specific connector
Extended temperature compensation

Single-channel conditioner: GSV-6K (in-line), GSV-1H (DIN rail), GSV-1M (IP67) or GSV-6L (miniature)
GSV-2MSDI (with standalone recorder function)
Desktop conditioner/display GSV-2TSDI
4-channel conditioner GSV-1A4
1 channel: GSV-2AS (RS-232/485 or CANopen) or GSV-3USB (1 or 2 channels USB)
4 channels GSV-4USB (USB)
6 channels GSV-6BT (Bluetooth)
8 channels GSV-8DS (LAN/WiFi/USB/EtherCAT/CANRS-232)
1.5 m connection cable with flying leads
