Ref: MCC - 0-500N

Miniature Compression Force Sensor | 0-500 N | 0.1% accuracy

Miniature compression force sensor
Measurement range: 0-500N
Accuracy: 0.1%
Non-repeatability: 0.05% of full scale
Zero sensitivity to temperature: 0.009% FS / °C
Dimensions: 19.3 x 28.3 x 12 mm
Force application: 6.4 mm diameter button
Output signal: 2.20 ± 0.20 mV/V
Supply: 1-12 VDC
Operating temperature range: -55 to +90°C
Construction: Aluminium
Weight: 20 gr
Standard cable output: 1.5 m
Applications: robotics, medical, machine tools, test benches

View the compression force sensors range

Generally deliverable within 2 to 8 weeks ARC

Overview

The MCC compression force sensor measures compression forces up to 500N in a compact size, with an accuracy of 0.1% of full scale. Force is applied via a slightly spherical 6.4 mm diameter load button. The full-scale output signal is 2.2 mV/V, and overload protection is 150%.

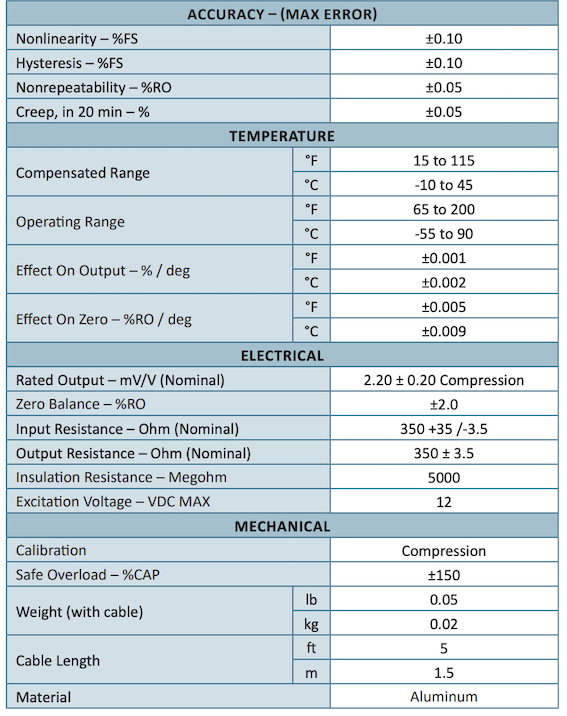

Specifications

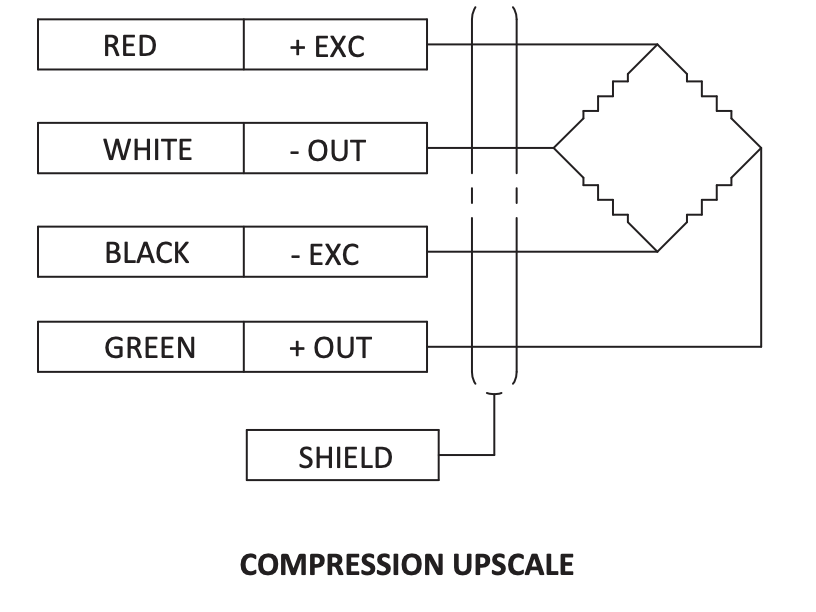

The MCC compression sensor is made of aluminium, with an operating temperature range of -55 to +90°C. A 1.5 m long, 4-wire (28 AWG) shielded cable is provided for sensor supply (1-12 VDC) and output signal (unamplified). Installation is done using 2 screws.

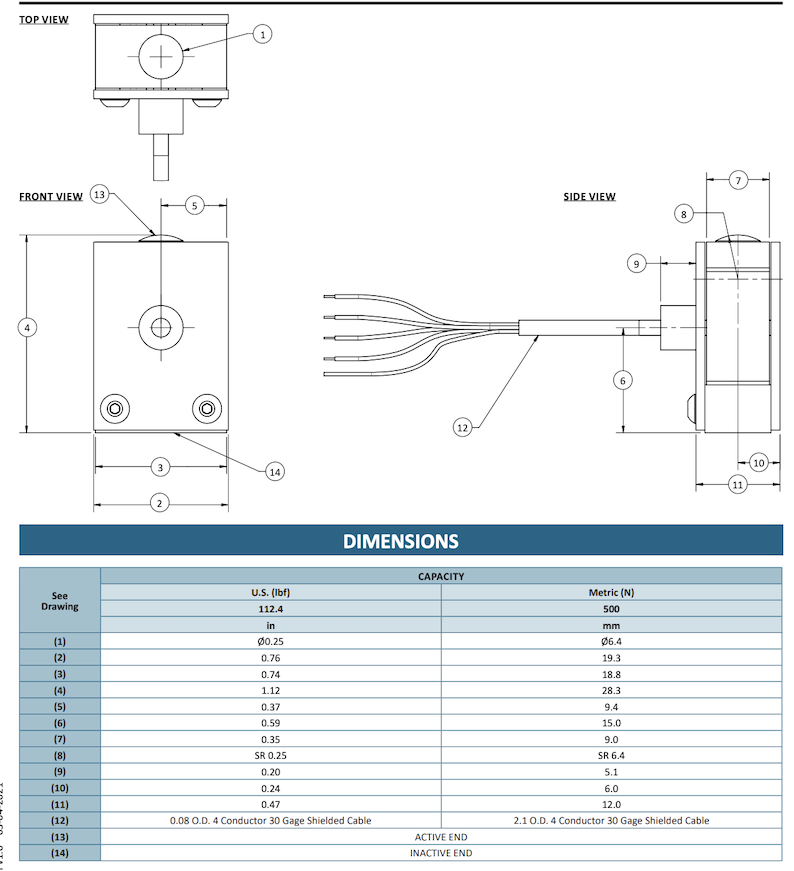

Dimensions

Conditioning and Data Acquisition

The output signal of MCC sensors is unamplified. Several options are available to complete the measurement chain.

Afficheur 9840	GSV-2TSDI	GSV-3USB	PMI-520AJ	GSV-1A	GSV-6K	GSV-6K	GSV-6L

High-precision 1 or 2-channel digital display	24-bit display with data acquisition function	USB data acquisition module	Precision analog conditioner with voltage or current output	IP66 analog conditioner output +/-10V or 4-20mA or 12±8mA	In-line conditioner output +/-10V or 4-20mA or 12±8mA	Miniature PCB conditioner output +/-10V or 4-20mA or 12±8mA	Single-channel display
