Ref: ASG-3000

Dynamic strain gauge for asphalt / pavement - 2000 µm/m

Strain gauge extensometer (4 active gauges - full bridge)
Range: ±2000 µm/m
Resolution: 1 µm/m
Sensitivity at 1000 µm/m: ~1.3 mVOut/Vexc
Voltage: < 10 VDC
Output signal: non-amplified

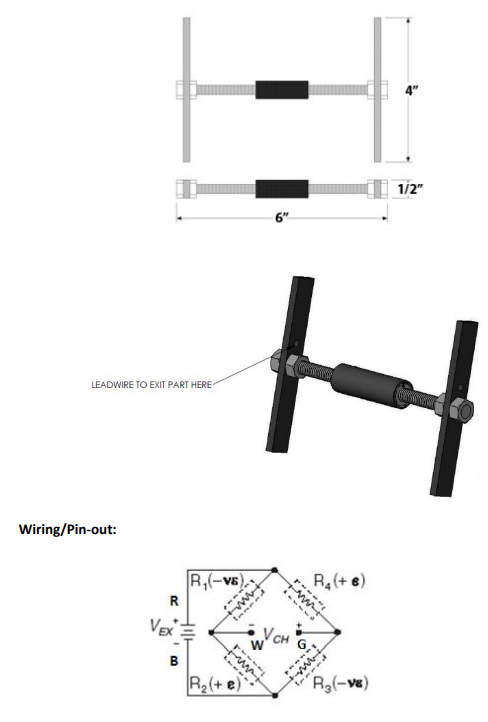

Dimensions: 150mm x 100mm, diam 12.7mm
Output: 4-wire 22 AWG cable
Operating temperature: -34 / +200 °C

Overview

The dynamic strain gauge for the ASG-3000 is a strain gauge to be installed in the pavement, designed for axial strain measurement under dynamic conditions. The ASG-3000 is ideal for dynamic stress measurement as well as pavement monitoring. The ASG-3000 integrates 4 strain gauges mounted in a full Wheatstone bridge, which compensate for temperature and wire resistance, and filter unwanted noise.

The ASG-3000 is robust and designed to withstand the high temperatures and significant compressive forces associated with asphalt laying. Each sensor is individually calibrated and supplied with a certificate of conformity.

Specifications

Specification	Value
Input Resistance	350Ω Nominal
Output Resistance	350Ω Nominal
Sensitivity at 1000 µϵ	~1.3mV/V Nominal
Excitation	2-5 VDC
Operating Temperature Range	-34° to 200° C
Lead Wire	#22 AWG Truck-Weight Lead Wire

Mounting and use

The strain gauge is mounted on a proof body to be positioned on or in the pavement.

The strain gauges are mounted in a full bridge. Conditioning modules are available as options, for a 0-10 VDC, 4-20 mA or digital output signal. Identification of the strain/stress relationship is done by calibration on the application. The operating temperature range is -34 to +200°C.
