Ref: ME-145

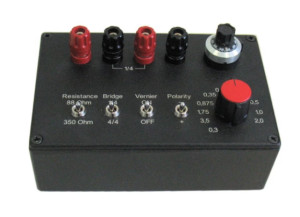

Calibrator for strain gauges amplifier
- Calibrator for strain gauges amplifier;
- 10 steps 0.2, 0.5, 1.0, 2.0, 0.3, 0.35, 0.875, 1.75, 3.5 mV/V;
- Setup for full bridges or quarter bridges
- Terminal resistance of bridge supply : 350, changeable to 88 ohms
- Dimensions : 145 x 95 x 74 mm
- Weight : 470 grams
- Rugged aluminium housing
?
Delivery time usually 4 weeks
The straingage calibrator ME-145 simulates output signals of sensors with straingages.
A selector switch is available to select the polarity. With a step switch 10 different output signals between 0 mV/V and 3.5 mV/V can be selected.
Quarter bridges may be simulated in three wire technique as well with negative output signals.
- Electronic type
- Signal Conditioning
- Input channels
- 1
- Input signal type
- SG bridge
- Digital output signal
- none
- Datalogger
- no
- Tension d'alimentation
- 10 Vcc
- Protection Class
- IP40
- Housing
- Aluminium
me145_en_PMi.pdf
- Faxtory or DAkkS accredited calibration certificate
- Cable with M12 connector
